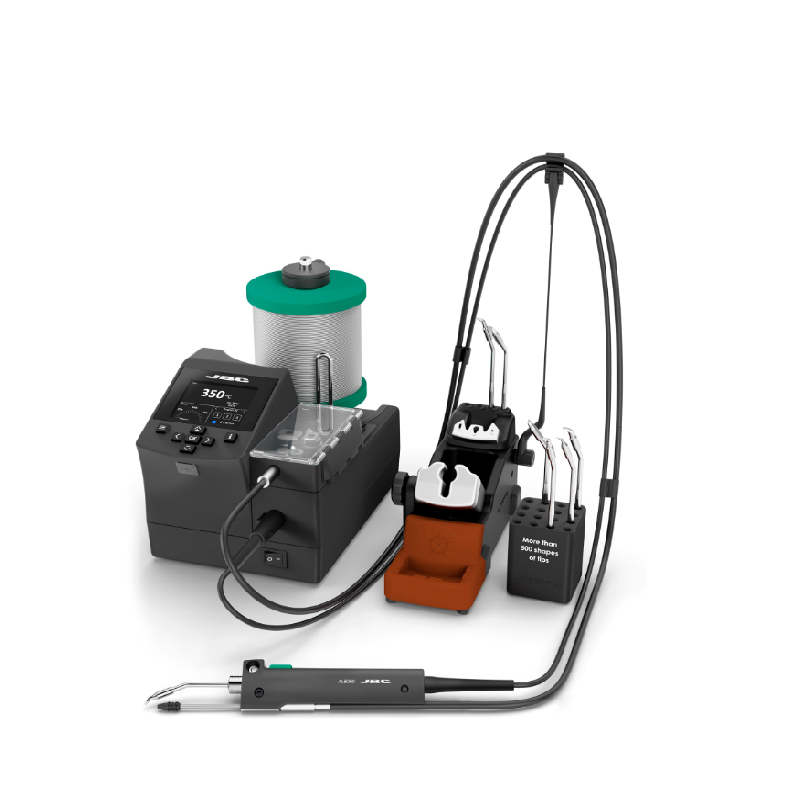

JBC ALE-210VA Automatic-Feed Soldering (150W, 90 ~ 450ºC)

Peak power: 150 W

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Solder wire diameter: 1.0 mm / 0.04 in with GALE10V already assembled

Max. wire length: 250 mm / 9.84 in

Min. wire length: 0.5 mm / 0.02 in

Temperature accuracy: ±3%

ESD safe: Meet ANSI/ESD S20.20-2021

Tip-to-ground resistance: <2 ohms

Tip-to-ground voltage: <2 mV RMS

USB-A:

Firmware update

Graphics and profiles

USB-B: PC communications

FAE / Robot connector: Remote control or FAE Fume Extractor connection

COMPATIBLE SOLDER REEL

Weight: up to 2 kg / 4.4 Ib

Diameter: max. 100 mm / 3.94 in

Height: max. 100 mm / 3.94 in

Reel stand axis: Ø 10 mm / Ø 0.4 in

WEIGHT AND DIMENSIONS

Control Unit:

235 x 170 x 112 mm / 7.83 kg.

9.25 x 6.69 x 4.41 in / 17.25 lb.

Package:

545 x 345 x 275 mm / 8.46 kg.

21.46 x 13.58 x 10.83 in / 18.65 lb.
