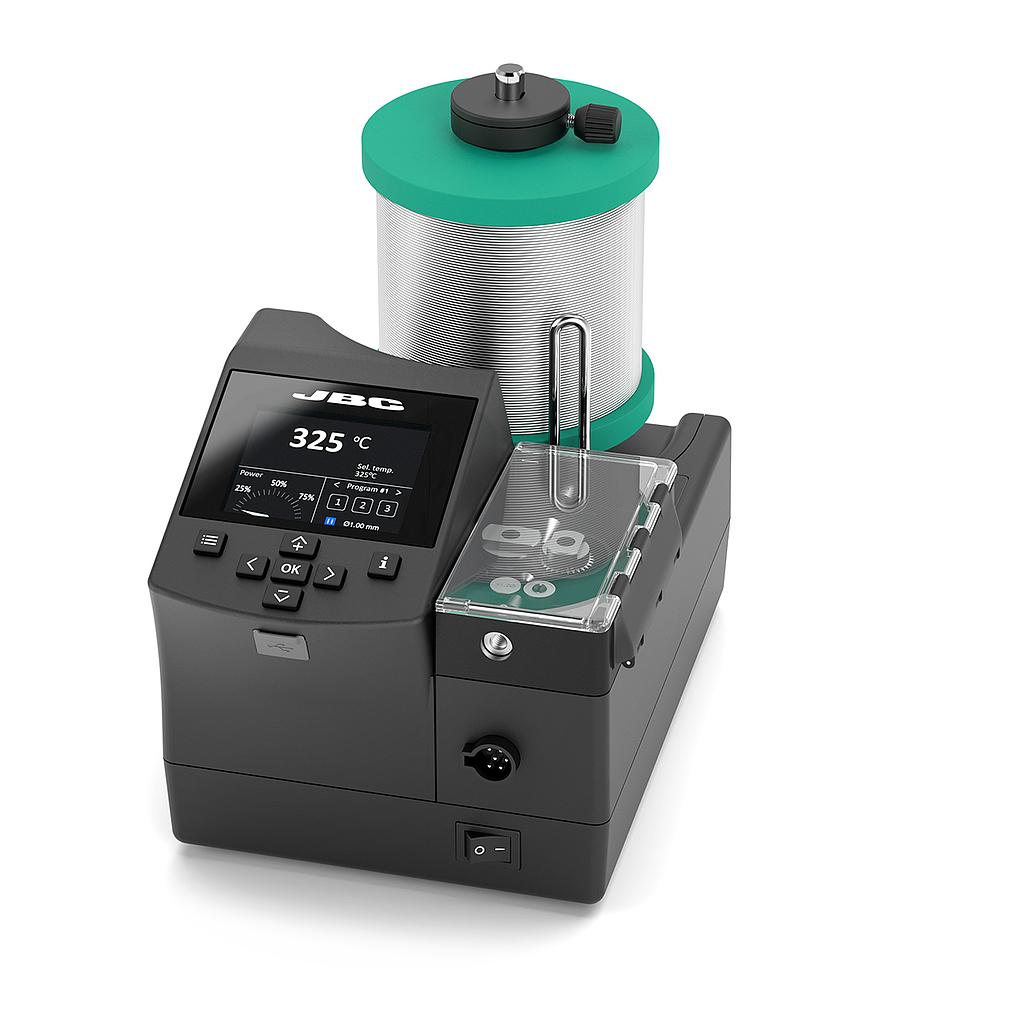

JBC ALE-210UVA Control Unit Automatic-Feed Soldering (230V 50/60Hz)

230V 50/60Hz.

Input fuse: T1A.

Earthing Fuse: F 1.25A.

Output: 23.5V

Peak power: 150 W - 23.5 V

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Tip-to-ground resistance: <2 ohms

Tip-to-ground voltage: <2 mV RMS

Solder wire diameter: 0.4 - 1.6 mm / 0.02 - 0.06 in

Max. wire length: 250 mm / 9.84 in

Max. forward speed: 50 mm/s / 1.97 in/s

Speed of Backward Function: 0.0 to 5.0 mm/s / 0.5 to 0.20 in/s

Compatible Solder Reel

Weight: up to 2 kg

Diameter: max. 100 mm

Height: max. 100 mm

Weight and dimensions

Control Unit

235 x 170 x 112 mm / 5.81 kg.

9.25 x 6.69 x 4.41 in / 12.80 lb.

PRODUCT COMPOSITION

1 Instruction Manual

1 ALE Automatic-Feed Control Unit (guide components assembled)

1 GALE10V Guide Kit Ø 1.0 mm for ALE250 with perforation
