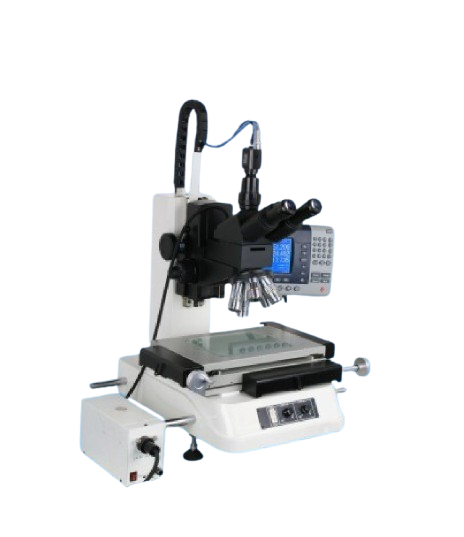

Jaten STM-2010 Tool Microscope (200x100mm)

Worktable:

Metal Table Size (mm): 404 x228

Glass Table Size (mm): 260 X 160

Travel Range_(mm): 200X100

External Dimensions(Lxwx H, mm): 530X500X670

Data Measurement System: X, Y, z Digital Display Resolution: 0.0005 mm Z-axisTravel (Focus): 150mm X, Y Coordinate Indication Error,,;;(3+ L/200) µm

Instrument Weight: 120Kg

Eyepiece: CFWFl0/22

Interchangeable ObjectiveLenses: 1X; 3X; 5X; 10X; 20X

Optional Imaging System:Domestic CCD or Original TEO Brand CCD from the USA

Optional: QuickMeasuring Measurement Software

Digital MagnificationSystem: Original Imported CCD Camera; 1XCCD; lX CCD Mc3 Camera

Digital Measurement System: Magnification Range: 170X-1700X; 17-inch Square Display Monitor; Digital Readout: DP300; Measurement Software: QuickMeasuring
