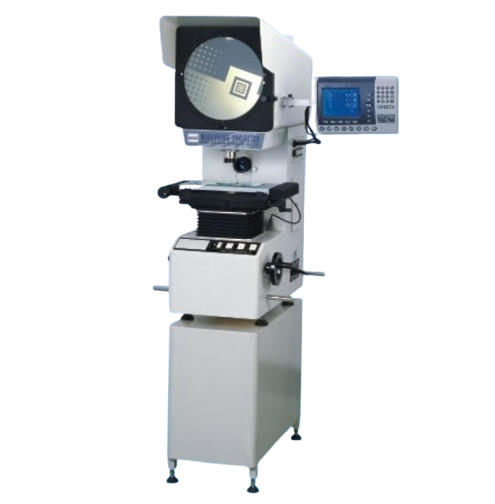

Jaten JTD-3020 Profile Projector (200x 100mm)

Type: Reverse Image

Metal Stage Size: 350x 170mm

Glass Stage Size:246x120mm

Stage Travel: X /Y: 200x 100mm

Stage Travel: Z-axis: 100mm (for focusing)

Accuracy: <3+L/200(µm)

Resolution of X/Y-: 0.0005mm

Screen:

Diameter: 312mm, Effective Range ;>: 300(with "*" Reticle):

Rotary Range: 0-360; Resolution Rotary Indicator: 1 'or 0.01:

Digital Readout: DP300(561-301) Multifunctional Data Processing System

Illumination: Surface and Contour lllumination:24v/150w halogen lamp (adjustable)

Cooling System: Forced Cooling (3-axis-fans)

Power Supply: AC110V/60Hz:220V /50Hz.650W

Dimension(LxWx H): 780x530x1150mm

Gross/Net weight: 200/155Kg

Auxiliary Lens

Video Magnification / Field of View(mm)

15x~95x / 20~3.2

30X-190X / 10~1. 6

60X-380X / 5-0.8

Video Magnification / Field of View(mm) / Working Distance(mm)

7.5X-48X  / 40~6.4 / 175

15X-96X / 20-3.2 / 96

30X-190X / 10.6-1.6 / 32
