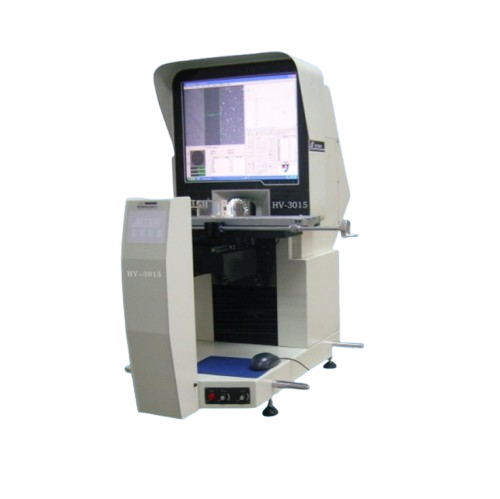

Jaten HV-3015 Vision Measuring Machine (300X150X125mm)

Working Stage

Metal Stage Size (rran): 455x126

X axis Travel (mm): 300

Y axis Travel (mm): 150

Z axis Travel (mm): 125

Swing Range: ± 1s·  (Rotation around X axis)

Dimensions (L x W x H) (mm): 1164x634x1048

Display Screen Size (inch): 19

Data Measurement System:

0bJecti,;e fl'ocal Length: Approx. 92 mm

X, Y Digital Display Resolution: 0. 0005 mm

X, Y Coordinate Indication Error: ≤(3 + L/200) µ.

Power Supply: 180V (AC) ~ 260V  (AC) 50Hz

Measurement Software: Standard software includes automatic edge detection, deburring measurement, and workpiece alignment. It supportsmeasurements of points, 1ines, circles, angles, center distances, and more
