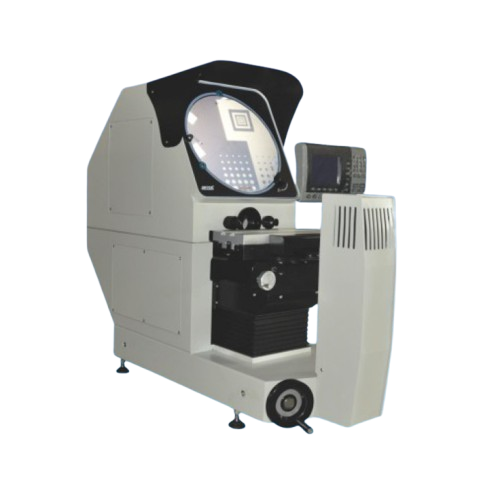

Jaten HB12-2010 Profile Projector (200 x 100 x 75mm)

Type: Reverse Image

Work Stage:

Metal Stage Size: 408x 126mm

Stage Travel: X / Z-axis: 200 x 100mm

Focual Travel: Y-axis: 75mm

X and Z Linear Resolution: 0.0005mm

Sway Range: ±15°

Screen:

Diameter: 300mm

Effective Range: ≥0300(with"*" Reticle)

Rotary Range: 0-360°

Resolution Rotary Indicator: 1'or0.01

Accuracy: ≤3+L/200(um)

Digital Readout: DP300(561-301) Multifunctional Data Processing System

Illumination: Contour illumination:24v/150w(halogen Lamp); Surface illumination: 21v/150w(Optical Fiber)

Power Supply: AC110V/60Hz;220V/50Hz,650W

Recommended Support Table Specifications: Load Capacity: ≥250 kg

Table Dimensions (L X W X H): 1000 X 550 x 631 mm
