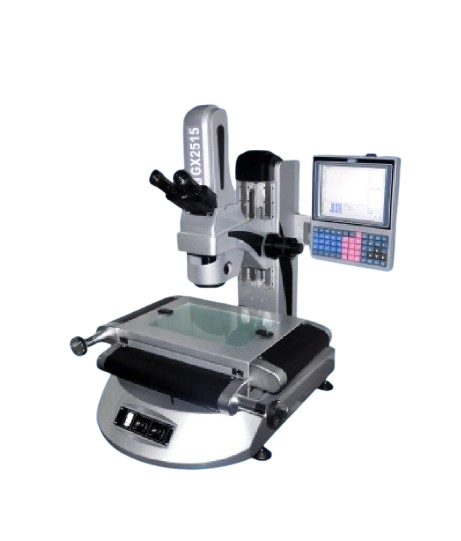

Jaten GX2515-IIA Tool Microscope (250x150x150)
Visual System
Objective Magnification: IX (standard), 2X (optional)
Eyepiece Magnification: IOX (monocular or binocular, optional)
Total Magnification: IOX - SOX (including distortion)
Objective Lens Magnification Error: ≤0.08%
Imaging System
Camera: 1/3" CCD
Video Magnification: 30X - 230X
Image Resolution: 640 x 480
Z-Axis Travel: X-Axis: 250 Y-Axis: 150 Z-Axis: 150 (focusing travel)
Resolution (X, Y, Z Axes): 0.0005 mm
Coordinate Indication Error (µm): X, Y (3 + L / 150)
Reflected Illumination Source: 12V LED Ring Light with Laser Spot Refledive Illumination
