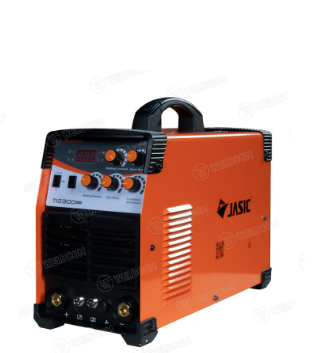

JASIC TIG300 W229 TIG Welding Machine (1~900Ms, 7.2KVA)

Input voltage: AC380V±15%, 50Hz/60Hz

Power rating (KVA): 7.2

Power factor: 0.93

No-load voltage (V): 60

Rated output (A/V): Normal TIG: 250/20, Stick Welding: 210/28.4

Current adjustment range (A): Cold TIG: 50-300, Normal TIG: 10-250, Stick Welding: 20-210

Welding time (Ms): 1900

Idle time (s): 0.110

Arc force (A): Stick Welding: 0~60

Duty cycle (%): Normal TIG: 40, Stick Welding: 50

Arc ignition type: Normal TIG/Cold TIG: HF

Gas delay time (s): Normal TIG: 2-10

Efficiency (%): 87

Protection class: IP21S

Insulation class: F

Dimensions (mm): 492×209×380

Weight (kg): 14.8
