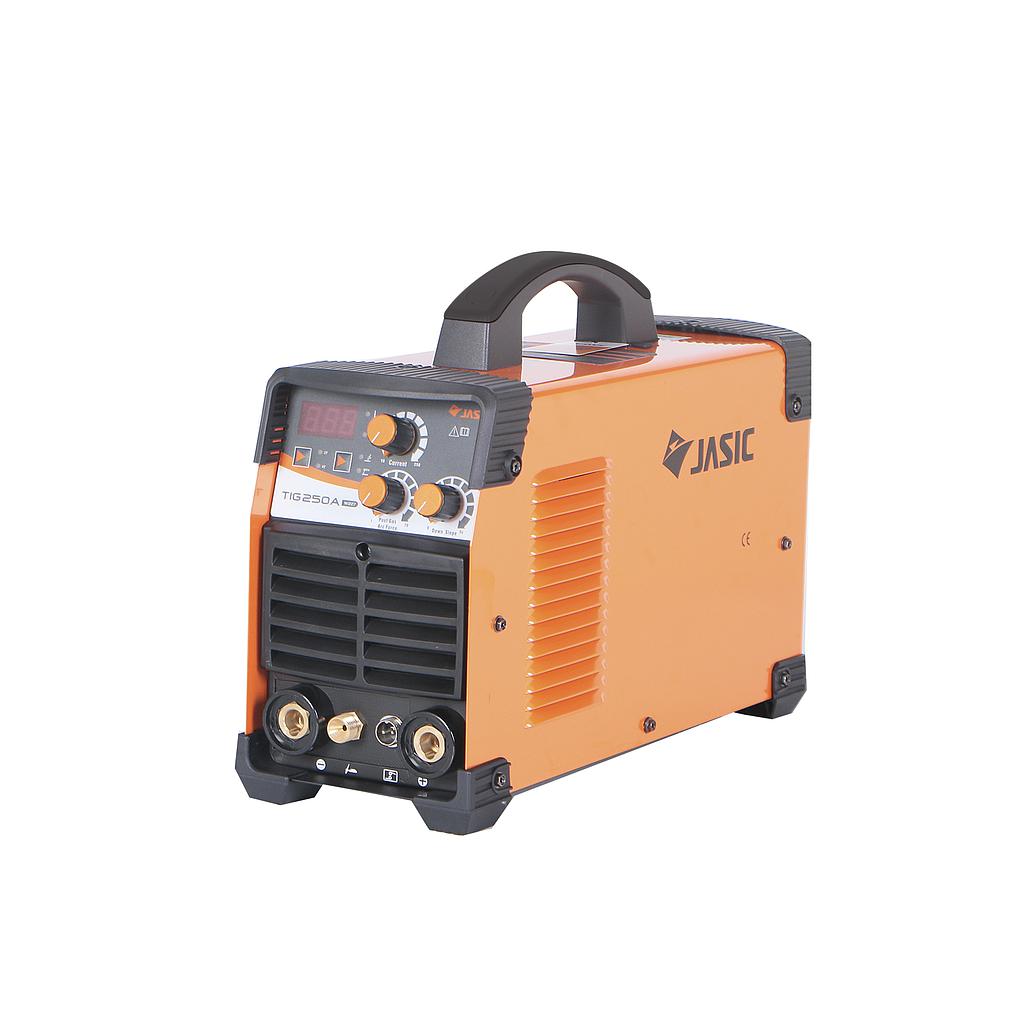

JASIC TIG250A W227 TIG welding machine

Rated input voltage: AC220V±15% 50 HZ

Welding mode: tig welding / rod welding

Rated input current: TIG: 32A MMA: 41.5A

Rated power: TIG: 7.3 KVA MMA 9.2 KVA

Welding current/rated output voltage: TIG: 250A/20V MMA: 230A/29V

Welding current adjustment range: TIG: 10A--250A MMA: 10 - 230A

Load Cycle Imax (40°C): TIG: 30% MMA: 20%

No-load voltage: DC70V

Gas delay time: 1-10 seconds

Line drop time: 1-5 seconds

Arc priming type: HF

Efficiency: 85%

Power factor: 0.68

Fuse required: 63A

Protection level: IP21S

Insulation grade: F

Dimensions (with handle): 430mm×168mm×312mm

Weight: 7.5Kg
