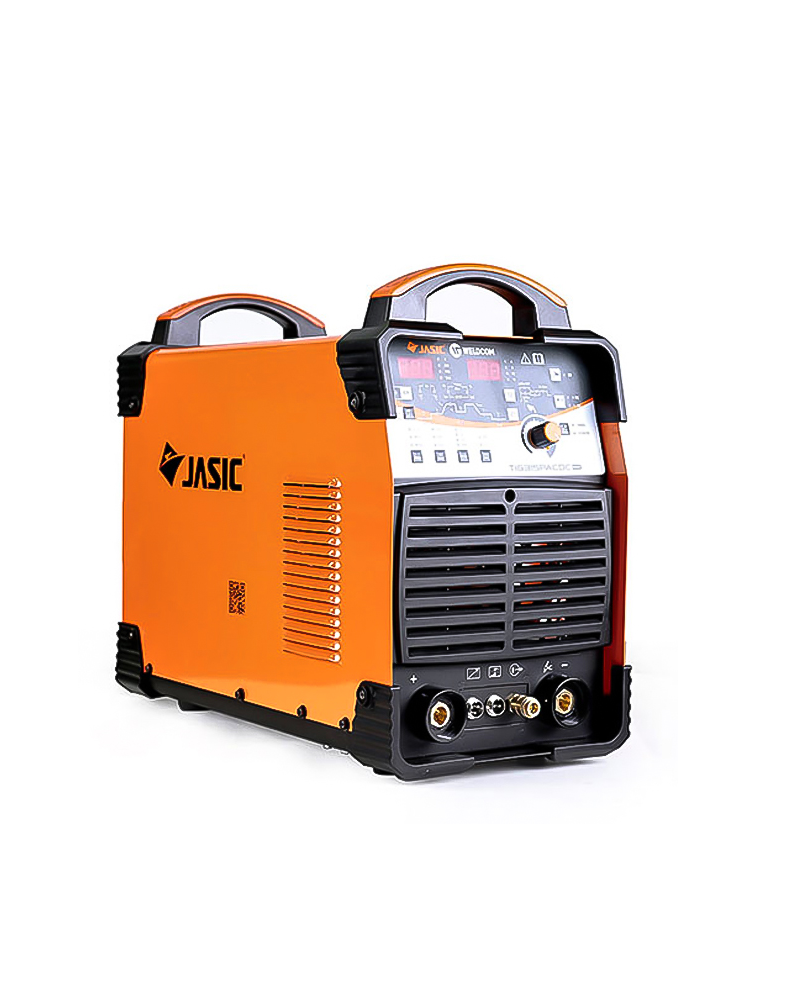

JASIC TIG-315P ACDC E303 TIG Welding Machine

Rated input voltage: 3-phase AC380V±15% 50Hz/60Hz

Rated power: 14.5 kVA @TIG, 16.4 kVA @MMA

Rated welding current/output voltage:

TIG AC: 315A / 20V

TIG DC: 315A / 5V

MMA: 270A / 30.8V

Welding current adjustment range:

TIG: 6-315A

MMA: 10-270A

Rated duty cycle: 35%

Post-gas time (s): 0~15

Pulse frequency:

AC: 0.5～200 Hz

DC: 0.5～20 Hz

Arc starting type: HF

Power factor: 0.7

Efficiency: 80%

Protection class: IP21S

Insulation class: F

Dimensions (with handle): 522×267×442 mm

Weight: 26 kg

Accessories:

WP18 welding torch (5m) + gas hose

Ground clamp 3m with 35mm cable

2 quick connectors 35x50

Kowon argon regulator (internal/external thread).
