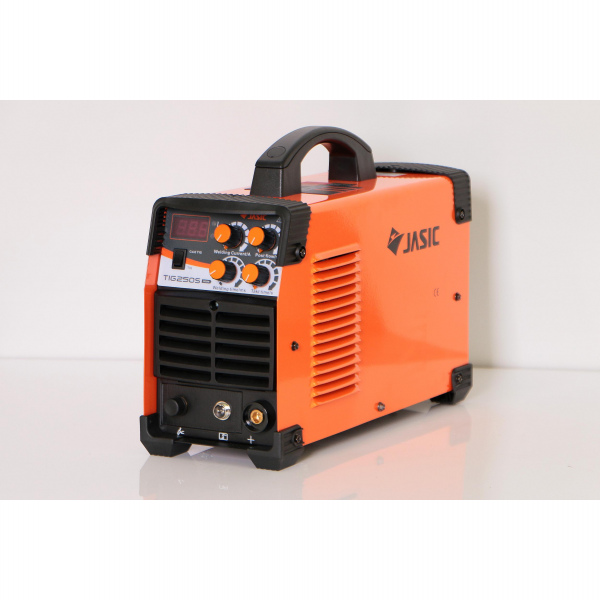

JASIC TIG 250S W228 Cold TIG Welding Machine

Rated input voltage: single phase AC220V±15% 50Hz/60Hz

Rated power:6.53 KVA

Normal tig welding:

Welding current / rated output voltage :220A/18.3V

Welding current adjustment range: tig: 10-220

Gas delay time 2s-10s

Arc priming type: HF

Rated load cycle: 35%

Cold tig welding:

TIG welding current adjustment range: 50-250

Welding time. 1-900 ms

Delay time when 0.1s-10s

Arc priming type : HF

No-load voltage: 60V

Efficiency: 85%

Power Factor 0.93

Protection class IP21S

Insulation grade : F

Dimensions (with handle) 425mm×165mm×320mm

In the weight of 8 Kg

Included accessories:

4m tig welding gun: 01 piece

Argon Watch: 1 piece

Cooling clamp 2m: 01 set

Single air wire 6: 03m

Belt : 02 pieces
