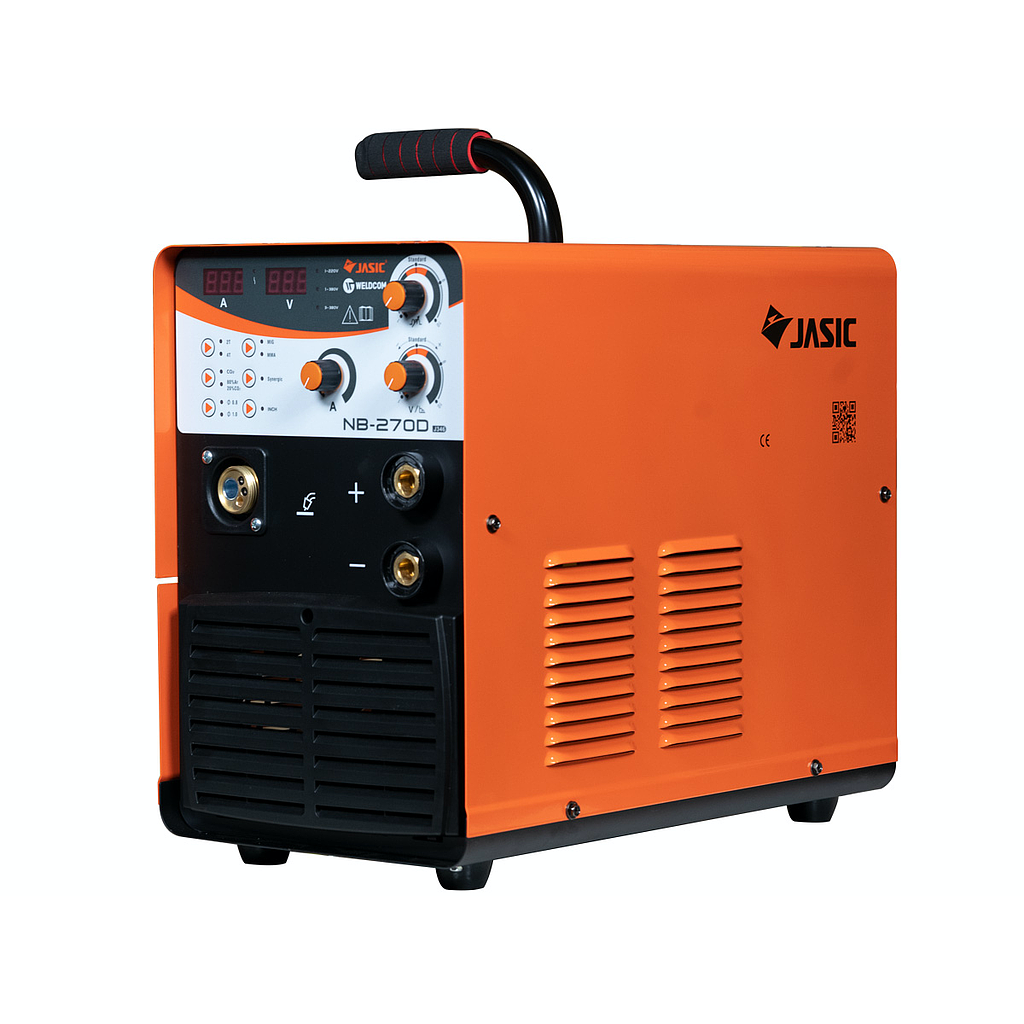

JASIC NB270D J346 MIG Welding Machine

1 phase 220V

Rated input voltage: AC220V ±15% 50/60Hz

Power factor: 0.67

Rated open circuit voltage: 70V

Rated output (A/V): 200/24

Rated load cycle: 30%

Welding current adjustment range: 13-28V

1 phase 380V

Rated input voltage: AC380V ±15% 50/60Hz

Power factor: 0.48

Rated open circuit voltage: 61V

Rated output (A/V): 200/24

Rated load cycle: 30%

Welding current adjustment range: 13-28V

3 phase 380V

Rated input voltage: AC380V ±15% 50/60Hz

Power factor: 0.60

Rated open circuit voltage: 61V

Rated output (A/V): 270/27.5

Rated load cycle: 25%

Welding current adjustment range: 13-32V

Welding current adjustment range: 40-270A

Output features: MIG: CV MMA: CC

Protection class: IP21S

Insulation class: F

Welding wire diameter: 0.8 - 1.0mm

Stick welding diameter: 2.5-4.0mm
