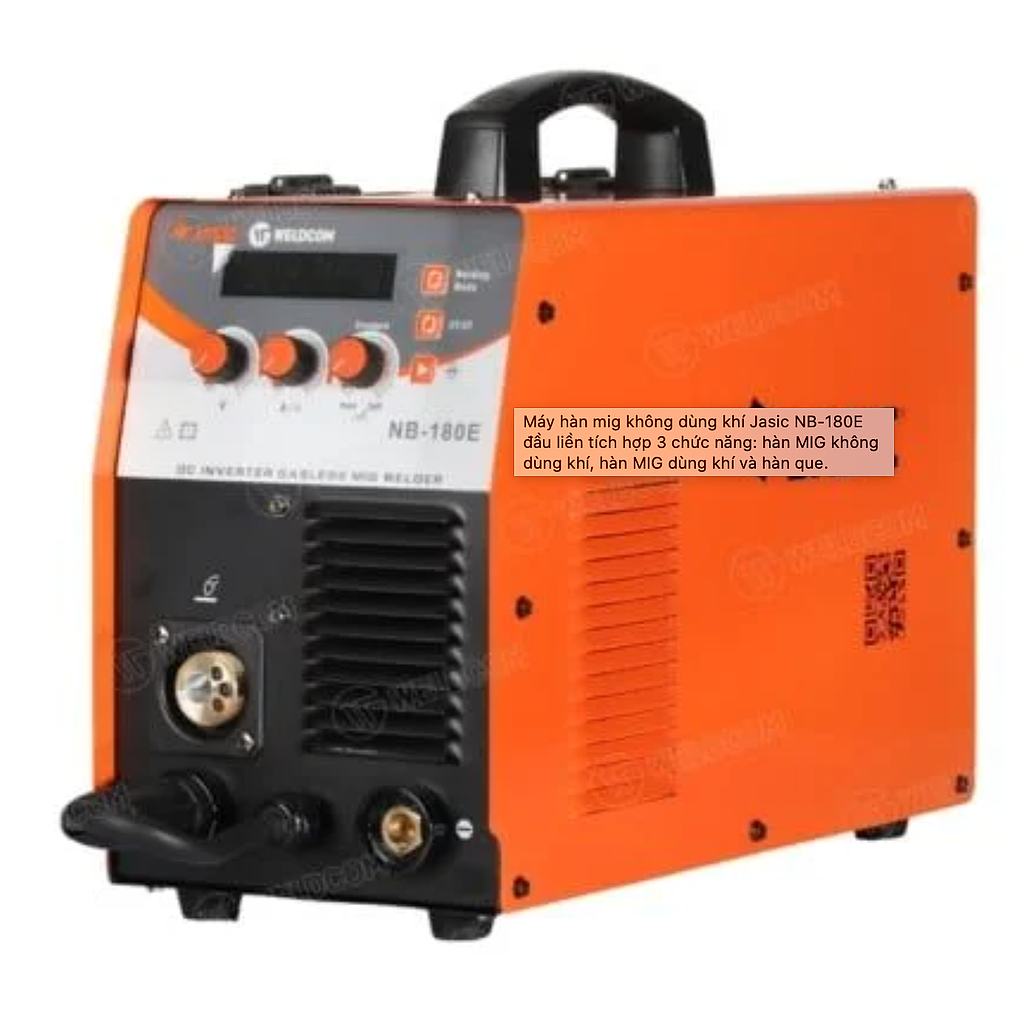

JASIC NB-180E MIG Welding Machine (1 phase AC220V ±15% 50/60Hz)

Rated input voltage: 1 phase AC220V ±15% 50/60Hz

Rated power: 6.8 KVA

Stick welding current adjustment range: 20-160A

Mig welding current adjustment range: 30-180A

Maximum welding current/voltage: 160A/22V

Voltage adjustment range: 11-26 V

Wire output speed: 1.5-15m/min

Load cycle: 25%

Efficiency: 85%

Power factor: 0.72

Welding mode: Mig welding with gas/Stick welding

Protection class: IP21S

Insulation class: F

Gas Mig welding wire diameter: 0.8, 0.9, 1.0 mm

Welding rod diameter: 1.6-3.2mm

Welding wire coil weight: 5kg

Dimensions: ~ 415x190x320mm

Weight: ~ 9.8 kg
