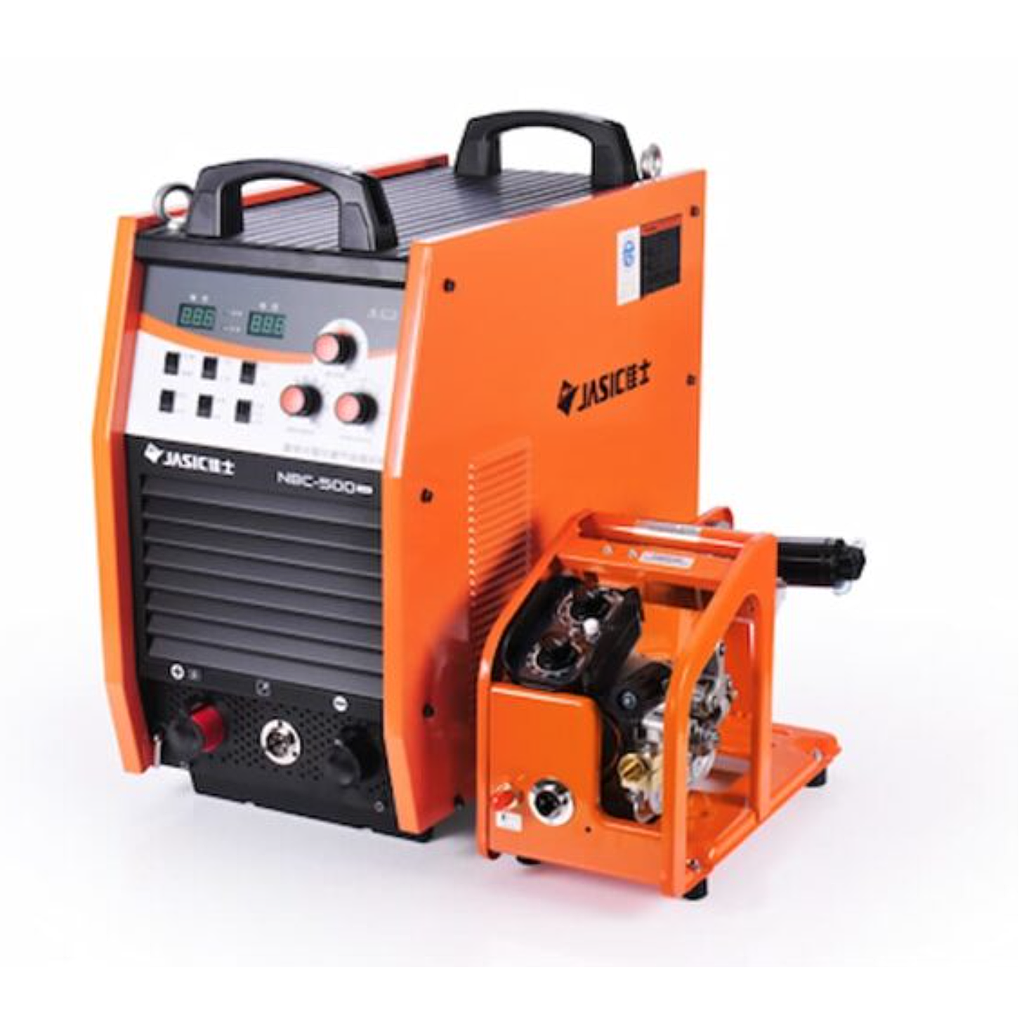

JASIC MIG500 N388 MIG Welding Machine

Rated input voltage: AC 380V±15%; 50/60Hz

Rated power (KVA): 26.7

Power factor: 0.88

No-load voltage: 80 V

Rated output (A/V): 500/40

MIG welding current range: 60-500 A

Stick welding current range: 30-500 A

Welding voltage adjustment range: 15.5-50 V

Wire feed speed: 2-22 m/min

Output features: MMA: CC; MIG/ MAG: CV

Load cycle Imax (40°C): 50%

Efficiency: 85%

Protection class: IP23

Insulation class: F

MIG welding wire diameter: 1.0-1.6 mm

Cooling type: Air-cooled

Accessories

Detachable wire feeder without cable

Cool clamp with 3m cord; 50mm cable

500A welding gun 3m long

KOWON 36V CO2 meter
