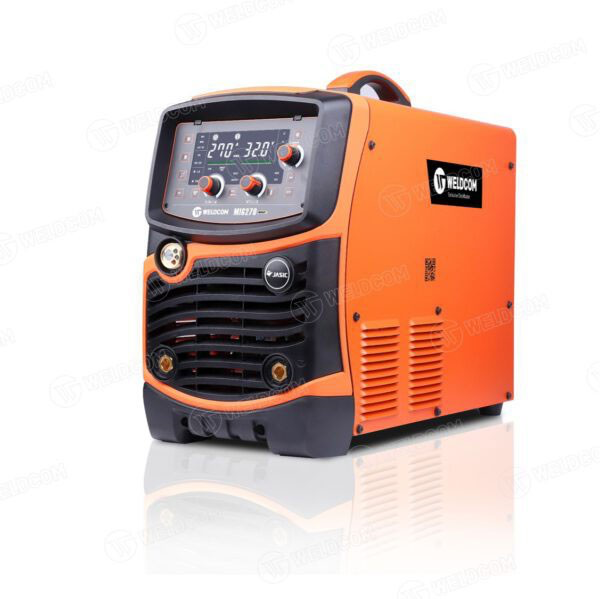

JASIC MIG270 N248 II (JET20) MIG Welding Machine

Rated input voltage (V): 3 phase AC380V±15% 50Hz

Rated power (KVA): 10.6

Rated output (A/V): 270/27.5

Rated no-load voltage: 62V

Welding current adjustment range (MIG): 50 – 270 A

Wire feed speed (m/min): 2.0-24

Wire supply type: solid wire

Power factor (cosφ): 0.7

Efficiency: 80%

Load cycle Imax: 30%

Protection level: IP21S

Insulation level: H

Welding wire diameter: 0.8-1.0 mm

Welding wire roll weight: 15 kg

Accessories included

15AK 3m welding gun

CO2 meter 36V

Cool clamp
