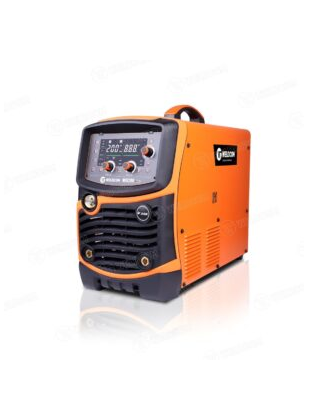

JASIC MIG200 N214 II (JET20) MIG Welding Machine

Rated input voltage (V): 1 phase AC230V±15% 50/60Hz

Rated power (KVA): 7.7

Rated output (A/V): MIG: 200/24; MMA 160/26.4

Rated no-load voltage: 56V

Welding current adjustment range (MIG): 50-200A

Welding voltage adjustment range: 13-26V

Wire feed speed (m/min) 2.0-24

Wire Feeder Type: Built-in

Power factor (cosφ): 0.75

Efficiency: 80.5%

Load cycle: 30%

Protection level: IP21S

Insulation level: H

Welding wire diameter: 0.8-1.0 mm

Welding wire coil weight: 15kg

Accessories included

CO2 meter 36V

15AK 3m welding gun

Cool clamp
