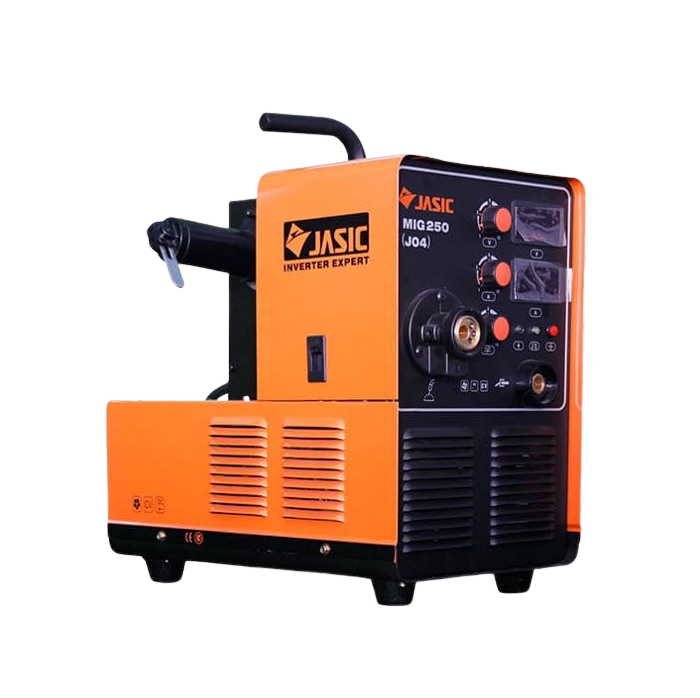

JASIC MIG250 MIG Welding Machine (380V; J04)

Input voltage: 3 phase, AC380V±15%, 50/60Hz

Rated input current (A): 14

Rated Power (KVA): 9.2

Output current adjustment range (A): 50-250

Output voltage (V) (DC): 15-29

Load Cycle Imax 40°C (%): 60

Load Cycle Imax 40°C (%): 0.85

Efficiency (%): 85

Wire feed type: Solid head

Gas delay time(s): 1

Welding coil diameter (mm): 270

Welding wire diameter (mm): 0.8-1.0

Protection class: IP21

Insulation class: F

Size: 510*273*440

Weight (kg): 26

Standard Accessories:

- CO2 meter

- 3m clamp

- 3m cable
