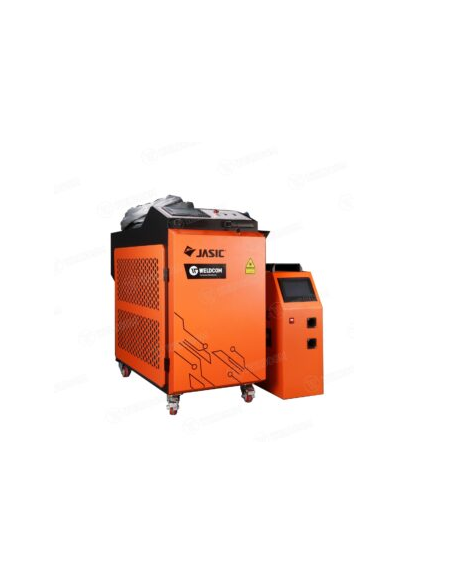

JASIC LS-30000D Laser Fiber Welding Machine (1080 ±-10mm, 0.5~ 6mm)

Power supply: 3 phase AC380V ±5%50Hz

Center wavelength: 1080 ±-10mm

Laser beam width: 0 – 6mm

Power: 3000w

Fiber cable length: Water-cooled

Optic fiber cable kit: 12m

Shielding gas: Argon/Nitrogen

Gas pressure: Welding > 3bar, Cutting > 4-7bar

Total power consumption: 13.5 kw

Electro-optical conversion efficiency: ≥30%

Base material thickness: 0.5~ 6mm

Welding wire diameter 0.8/1.0/1.2/1.6/2.0 mm

Standard accessories:

Laser power: 3000W

Cooler

Remote control

SUP23T welding gun

Wire feeder SUP-AMF-A (1 wire) & SUP-AMF-D (2 wires)
