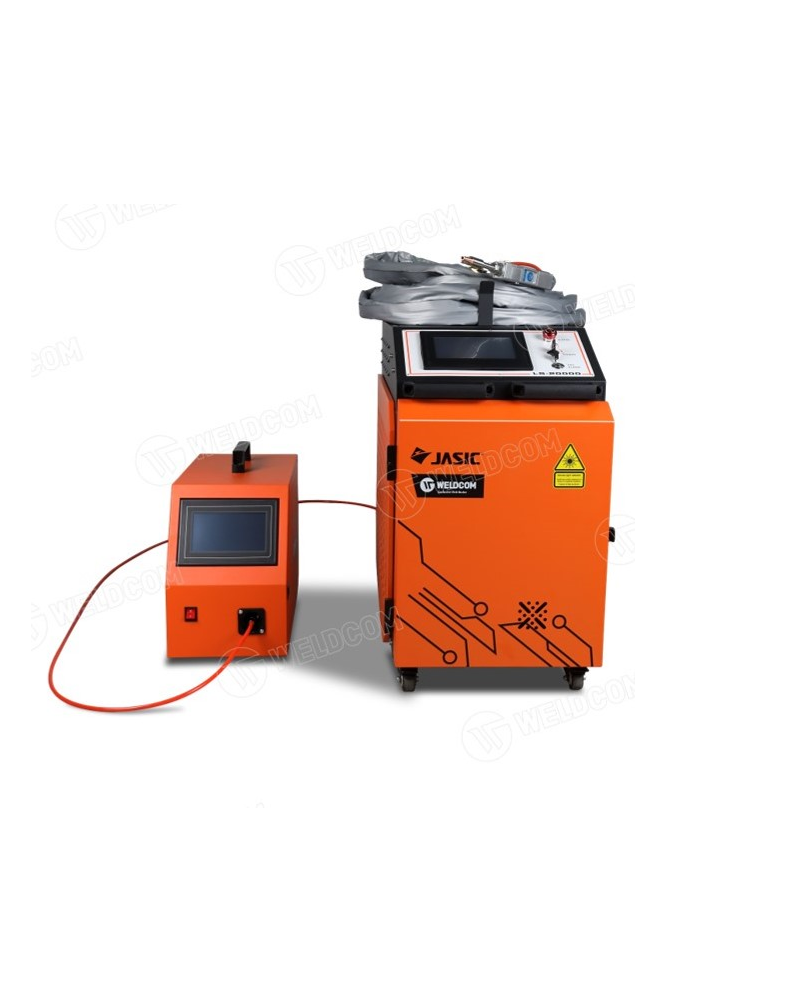

JASIC LS-15000 Laser Fiber Welding Machine (1080 ± 10nm, 0.5~5mm)

Power supply: AC220V±5%/50HZ

Laser beam width: 0 – 6mm

Laser wavelength: 1080 ± 10nm

Power: 1500w

Fiber cable length: Water cooled

Fiber optic cable set: 12m

Shielding gas: Argon/Nitrogen

Gas pressure: Welding > 3bar, Cutting > 4-7bar

Total power consumption: 7.2kw

Electro-optical conversion efficiency: ≥30%

Base material thickness: 0.5~5mm

Weld gap: ≥ 1mm

Ambient temperature: -10℃- 40℃

Weight (Welding source + input): 117.7kg

Dimensions: 980*420*710mm

Accessories included

Protective glasses: 5 pieces

Welding tips: 3 pieces

Eyeglasses: 1 piece

Rope wheel: 4 pieces
