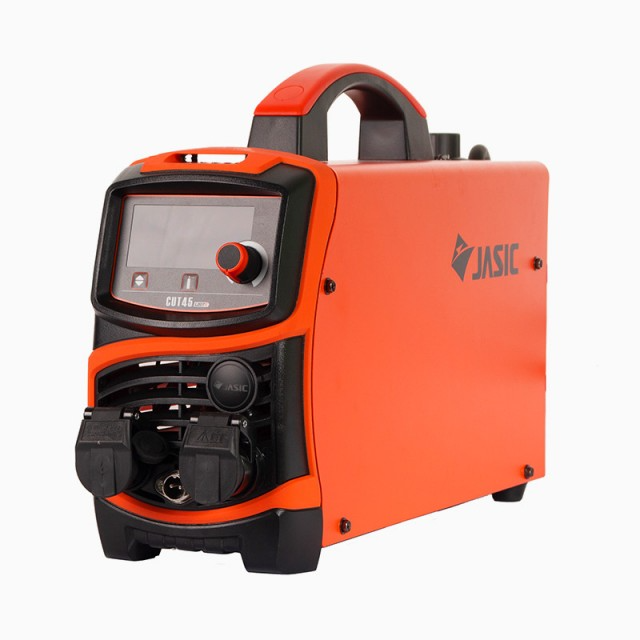

JASIC CUT45 L207 II JET20 Plasma Cutting Machine (0.4-0.6Mpa, ≤6mm, AC220V±15%)
ManufacturerJASIC(View more products from this manufacturer)
ModelCUT45 L207 II JET20
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Input Voltage (V/Hz): AC220V±15%, 50/60Hz
Rated Input Current (A): 24.3
Rated Power (KVA): 5.6
No-load Voltage (V): 220
Cutting Current Range (A): 20-40
Duty Cycle at Imax (25°C) (%): 60
Duty Cycle 100% (25°C) (A): 31
Efficiency (%): 85
Power Factor (cosφ): 0.93
Insulation Class: F
Protection Class: IP21S
Arc Starting: Contact
Compressed Air (for Carbon Steel) (Mpa): 0.4-0.6 Mpa, 7800 l/h
Compressed Air (for Stainless Steel) (Mpa): 0.4-0.6 Mpa, 1200 l/h
Effective Cutting Thickness (mm): ≤6
