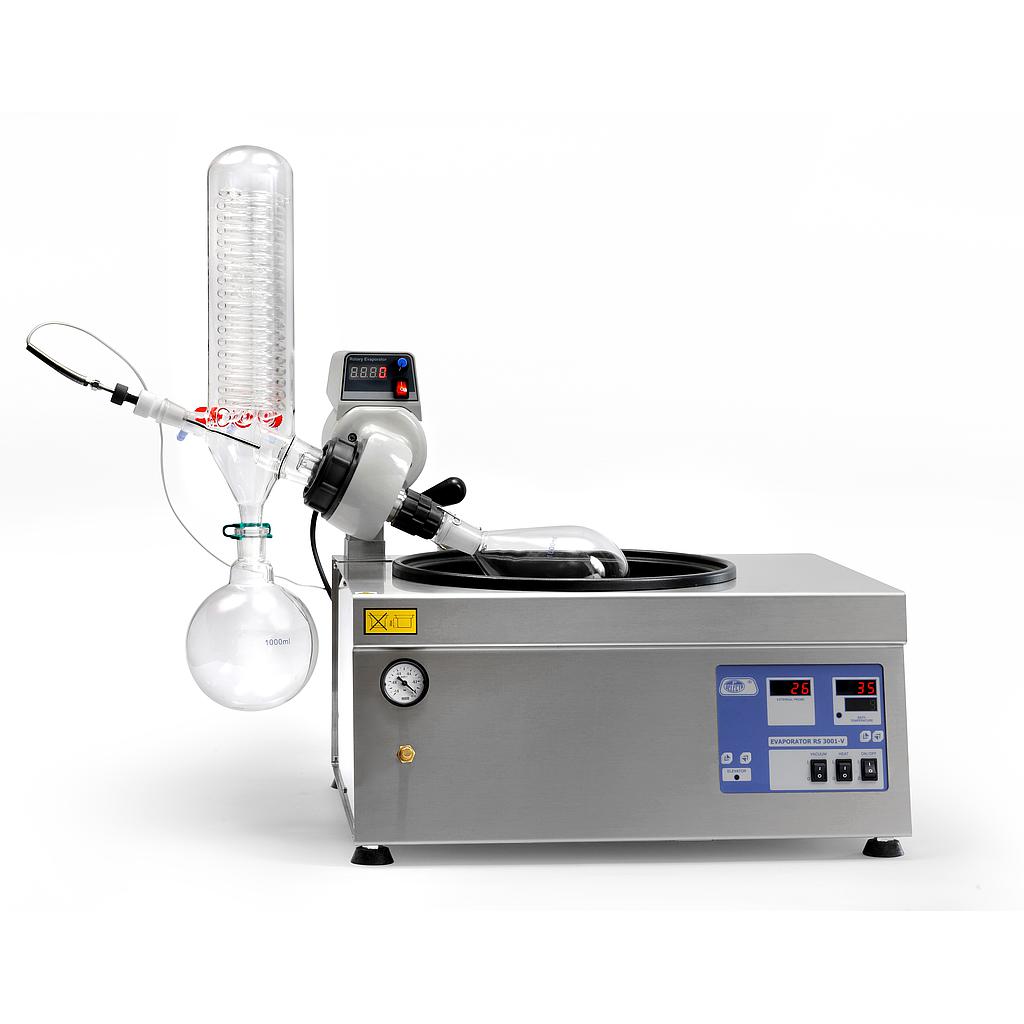

J.P. SELECTA RS 3001-V Rotatory evaporator (0~120rpm; 2000ml)

FEATURES

Compact rotatory evaporator composed of stainless steel AISI 304 case.

Electronic elevator system and bath made of dur-al alloy chemically treated.

Rotatory speed: from 0 to 120 rpm.

Bath temperature: up to 100°C.

External probe temperature type K: up to 100°C.

maximum volume of the receiving flask and evaporator flask: 2000 ml. Vacuum breaker with air inlet filter.

It is completely supplied with a tap for solution, a Type K probe, a coo- lant, one 2000 ml flask, one 1000 ml. flask and its accessories.

CONTROL PANEL

1. Digital reading indicator of external probe temperature.

2. Digital reading indicator of bath temperature.

3. Digital reading indicator of programmed temperature.

4 & 5. Bath temperature regulator.

6. Vacuum pump switch.

7. Heater bath switch.

8. ON/OFF switch.

9 & 10. Elevator.

11. Digital indicator and regulator of velocity RPM.

SPECIFICATIONS

RPM speed regulation: 0 to 120

Height (exterior cabinet) cm: 26

Width (exterior cabinet) cm: 46

Height (exterior cabinet) cm: 45

Consumption w: 1010

Weight Kg: 28
