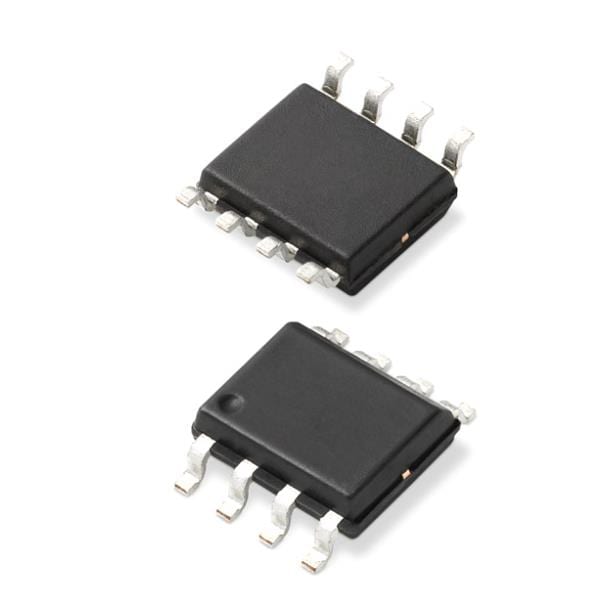

IXYS STS802U2SRP SCRs 1.5Amp Sensitive Dual SCR in SOP-8
ManufacturerIXYS(View more products from this manufacturer)
ModelSTS802U2SRP
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Holding Current Ih Max: 3 mA
Gate Trigger Current - Igt: 100 uA
Gate Trigger Voltage - Vgt: 800 mV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
On-State RMS Current - It RMS: 1.5 A
Non Repetitive On-State Current: 20 A, 24 A
Rated Repetitive Off-State Voltage VDRM: 800 V
