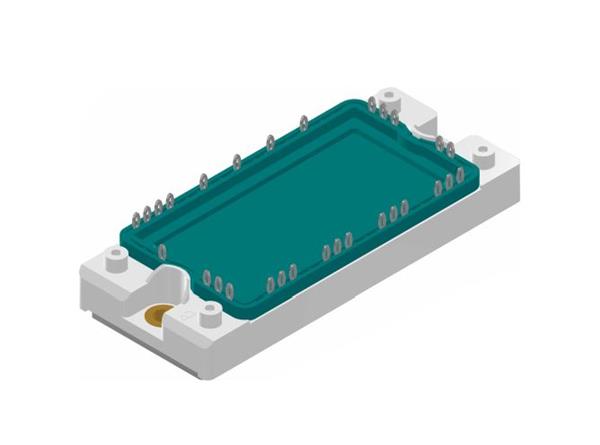

IXYS MCNA120UI2200P-PC SCR Modules MCNA120UI2200PED-PC BIPOLAR MODULE-Y4
ManufacturerIXYS(View more products from this manufacturer)
ModelMCNA120UI2200P-PC
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: Si
Circuit Type: Isolated
Current Rating: 75 A
Mounting Style: Press Fit
On-State Voltage: 2.05 V
Holding Current Ih Max: 100 mA
Gate Trigger Current - Igt: 70 mA
Gate Trigger Voltage - Vgt: 1.4 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
On-State RMS Current - It RMS: 46 A
Non Repetitive On-State Current: 425 A, 500 A
Off-State Leakage Current @ VDRM IDRM: 50 uA
Rated Repetitive Off-State Voltage VDRM: 2.2 kV
