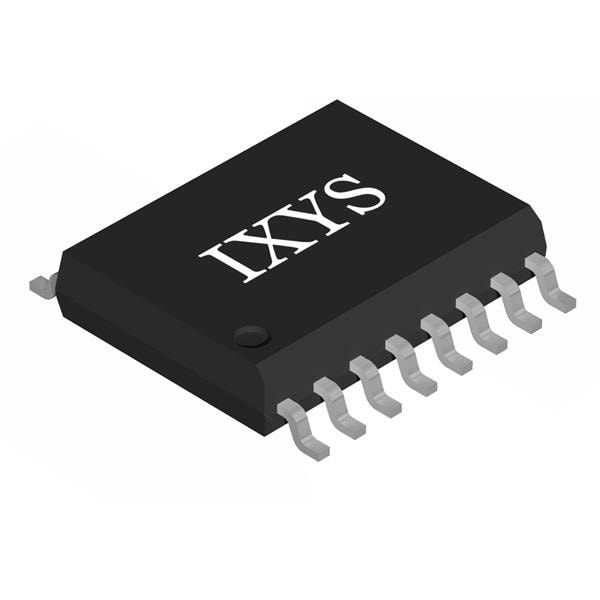

IXYS LF2113BTR High-Side, Low-Side HI LO Side DRVR 600V 2A SOIC-16

Fall Time: 13 ns

Rise Time: 15 ns

Logic Type: CMOS

Technology: Si

Mounting Style: SMD/SMT

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 20 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 1.25 W

Propagation Delay - Max: 20 ns

Operating Supply Current: 56 uA

Maximum Turn-On Delay Time: 105 ns

Maximum Turn-Off Delay Time: 94 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
