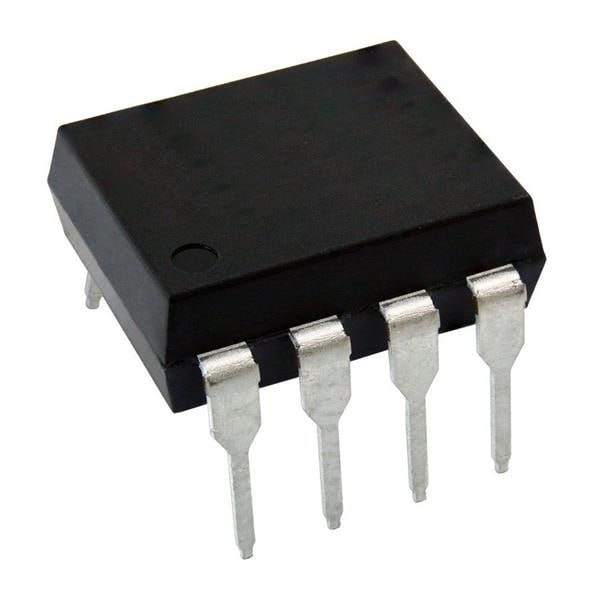

IXYS LAA100 Isolated 350V 120mA Dual Single-Pole
ManufacturerIXYS(View more products from this manufacturer)
ModelLAA100
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 6.35 mm (0.25 in)
Height: 3.302 mm (0.13 in)
Length: 9.652 mm (0.38 in)
Output Type: MOSFET
Unit Weight: 3.698 g
Contact Form: DPST (2 Form A)
Input Current: 50 mA
Mounting Style: PCB Mount
Termination Style: Solder Pin
Relay Contact Form: 2 Form A (DPST-NO)
Load Current Rating: 120 mA
Load Voltage Rating: 350 VDC
Control Voltage Range: 900 mVDC to 1.4 VDC
Pd - Power Dissipation: 800 mW
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Input to Output Isolation Method: Optocoupler
