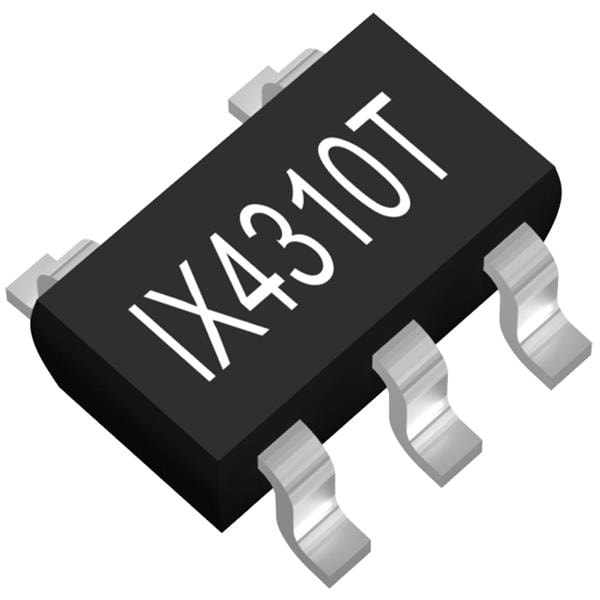

IXYS IX4310TTR Low-Side 2A HIGH SPEED LOW-SIDE DRIVER

Fall Time: 7 ns

Rise Time: 7 ns

Logic Type: CMOS, TTL

Technology: Si

Mounting Style: SMD/SMT

Output Current: 2 A

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Supply Voltage - Max: 24 V

Supply Voltage - Min: 5 V

Propagation Delay - Max: 30 ns

Operating Supply Current: 500 uA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 1.9 Ohms
