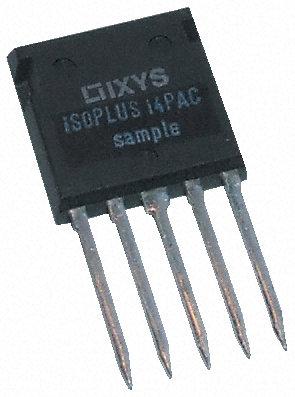

IXYS FMM75-01F Phase leg MOSFET Modules 75 Amps 100V

Width: 5.03 mm

Height: 20.88 mm

Length: 19.91 mm

Fall Time: 60 ns

Rise Time: 60 ns

Technology: Si

Unit Weight: 6.500 g

Channel Mode: Enhancement

REACH - SVHC: Details

Mounting Style: Through Hole

Qg - Gate Charge: 180 nC

Number of Channels: 2 Channel

Transistor Polarity: N-Channel

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 20 ns

Typical Turn-Off Delay Time: 80 ns

Id - Continuous Drain Current: 75 A

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 25 mOhms

Vds - Drain-Source Breakdown Voltage: 100 V

Vgs th - Gate-Source Threshold Voltage: 4 V
