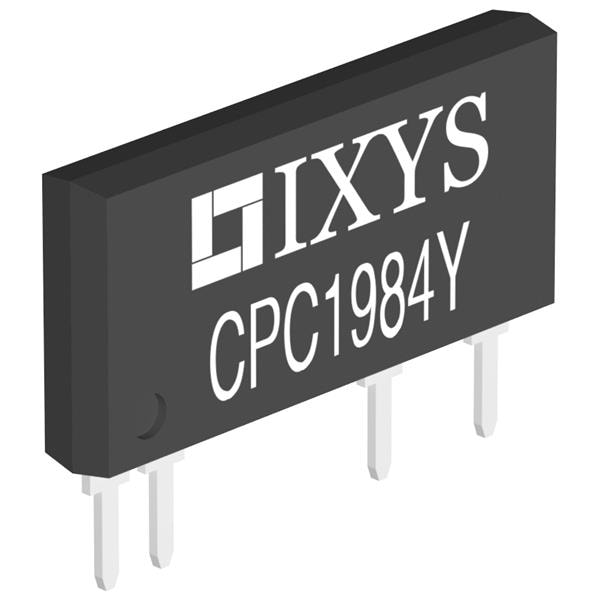

IXYS CPC1984Y Solid State Relays 600V AC/DC 1-FORM-A ENHANCED ISO PSIP

Width: 3.302 mm (0.13 in)

Height: 10.16 mm (0.4 in)

Length: 21.082 mm (0.83 in)

Output Type: MOSFET

Unit Weight: 6 g

Input Current: 50 mA

Mounting Style: PCB Mount

Termination Style: Solder Pin

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 1 A

Load Voltage Rating: 600 VDC

Control Voltage Range: 900 mVDC to 1.5 VDC

Pd - Power Dissipation: 1.6 W

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Input to Output Isolation Method: 4 kV
