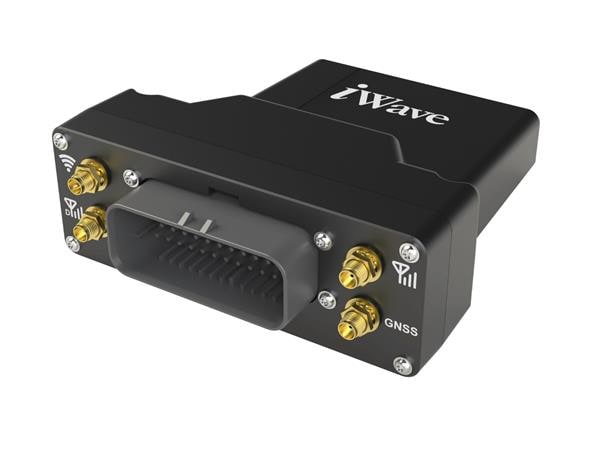

iWave Systems iW-G26ISA-512-08G-MIW-XM-12-EM-LI1BXX-D Gateways Rugged Telematics Device- Evaluation Kit with LTE Cat-M1, IP67 Enclosure

RAM: 512 MB

Flash: 8 GB

Data Rate: 1 Mb/s, 5 Mb/s

Frequency: 792 MHz

IP Rating: IP67

Dimensions: 140 mm x 124 mm x 45 mm

Memory Type: DDR3L

Interface Type: CAN, Ethernet, RS-232, USB

Processor Type: ARM Cortex A7

Number of Ports: 3 CAN, 2 Digital Input, 2 Digital Output, 1 Ethernet, 1 K-Line, 1 RS-232, 1 RS-485, 1 USB

Description/Function: Rugged Telematics Device

Supply Voltage - Max: 32 V

Supply Voltage - Min: 9 V

Operating Supply Voltage: 9 V to 32 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
