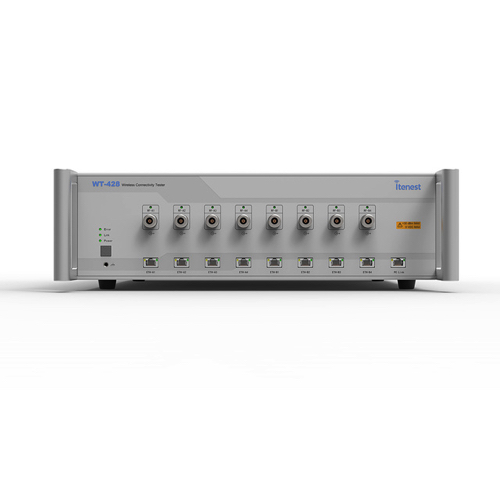

iTenest WT-428 Wireless Connection Tester (400 đến 7300 MHz; For Wi-Fi 7)

Input/Output Frequency Range: 400 to 7300 MHz

IF Bandwidth: 400 MHz

Input Power Range: +30 dBm peak (+25 dBm average)

Output Power Range (CW):

+5 dBm to -100 dBm (400 MHz to 6500 MHz)

0 dBm to -100 dBm (6500 MHz to 7300 MHz)

Input Power Accuracy:

SISO: ±0.3 dB (+25 to -40 dBm)

Combined: ±0.5 dB (+25 to -40 dBm)

Output Power Accuracy:

SISO: ±0.5 dB (+5 dBm to -90 dBm), ±1.0 dB (-90 dBm to -100 dBm)

Combined: ±0.5 dB (+5 dBm to -90 dBm), ±1.0 dB (-90 dBm to -100 dBm)

Input/Output Return Loss:

>15 dB (400 ~ 3800 MHz)

>14 dB (3800 ~ 6000 MHz)

>13 dB (6000 ~ 7300 MHz)

Port to Port Isolation: >110 dB

Residual Loopback EVM:

Power In/Out: -10 dBm

Averaged Over: 20 packets

Measured at: 6905 MHz

802.11be, 320 MHz, MCS 13

≤-50 dB

Note: Output power can be lower than -130 dBm
