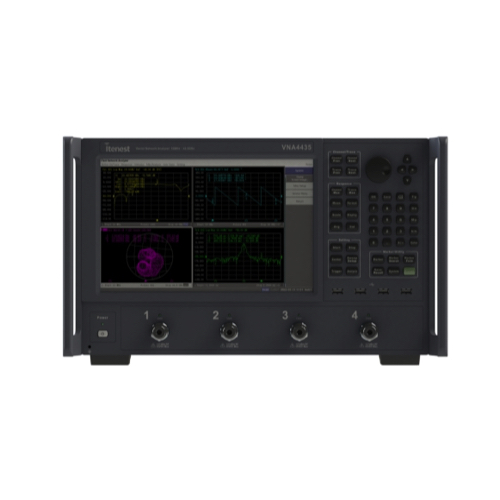

iTenest VNA4435 Vector Network Analyzer (100kHz ~ 43.5GHz)

SYSTEM MEASUREMENT RANGE

Frequency Range: 100kHz to 43.5GHz

Number of Test Ports: 2 or 4

Test Port Connector Type: NMD 2.4mm, male

Output Power Range: -55dBm to +10dBm

System Impedance: 50Ω

Frequency Setting Resolution: 1Hz

Power Setting Resolution: 0.05dB

Number of Measurement Points: 2 to 100,001

System Bandwidth (IFBW): 10Hz to 1.5MHz

System Dynamic Range: (RF Range Fixed Mode = OFF) @IFBW = 10Hz:

100kHz to 500kHz: 95dB

500kHz to 2MHz: 110dB

2MHz to 5.8GHz: 135dB

5.8GHz to 26.5GHz: 130dB

26.5GHz to 43.5GHz: 125dB

MEASUREMENT ACCURACY (UNCERTAINTY)

Noise: Meas. Power = Max Output Power

Transmission:

100kHz to 10MHz (IFBW = 3kHz): 4mdB rms / 0.03° rms

10MHz to 6GHz (IFBW = 70kHz): 4mdB rms / 0.03° rms

6GHz to 26.5GHz (IFBW = 70kHz): 3mdB rms / 0.02° rms

26.5GHz to 43.5GHz (IFBW = 70kHz): 4mdB rms / 0.03° rms

Reflection:

100kHz to 10MHz (IFBW = 3kHz): 5mdB rms / 0.05° rms

10MHz to 6GHz (IFBW = 70kHz): 5mdB rms / 0.03° rms

6GHz to 26.5GHz (IFBW = 70kHz): 4mdB rms / 0.04° rms

26.5GHz to 43.5GHz (IFBW = 70kHz): 5mdB rms / 0.04° rms
