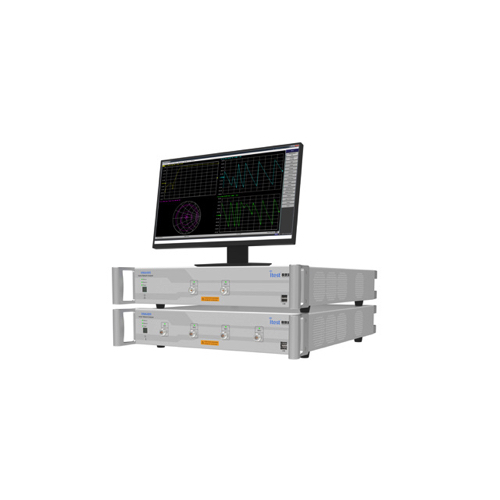

iTenest VNA 485 Vector Network Analyzer (300kHz ~ 8.5GHz)

SYSTEM MEASUREMENT RANGE

Frequency Range: 300kHz to 8.5GHz

Number of Test Ports: 2 or 4

Test Port Connector Type: NMD 3.5mm, male

Output Power Range:

300kHz to 6GHz: -55dBm to +10dBm

6GHz to 8.5GHz: -55dBm to +10dBm

System Impedance: 50Ω (75Ω via adapter)

Frequency Setting Resolution: 1Hz

Power Setting Resolution: 0.05 dB

Number of Measurement Points: 1 to 20,001

System Bandwidth (IFBW): 10Hz to 1.5MHz

System Dynamic Range (RF Range Fixed Mode = OFF, @IFBW = 10Hz):

300kHz to 100kHz: 125dB

100kHz to 6GHz: 135dB

6GHz to 8.5GHz: 130dB

MEASUREMENT ACCURACY (UNCERTAINTY)

Trace Noise: Meas. Power = Max Output Power

Transmission:

300kHz to 10MHz (IFBW = 3kHz): 3mdB rms / 0.02° rms

10MHz to 8.5GHz (IFBW = 70kHz): 4mdB rms / 0.03° rms

Reflection:

300kHz to 10MHz (IFBW = 3kHz): 3mdB rms / 0.02° rms

10MHz to 8.5GHz (IFBW = 70kHz): 5mdB rms / 0.05° rms
