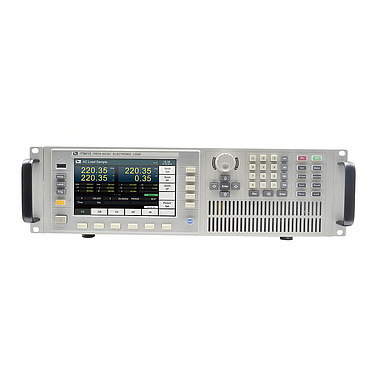

Itech IT8615 AC/DC Electronic Load (50-420V ; 0-20A; 0-1800W)

- Input:
+ Voltage: 50-420Vrms, 600Vpeak
+ Power: 0-1800W
+ Current: 0-20Arms, 60Apeak
+ Frequency: 45-450Hz
-Dimension: 482.5 mm x 133mm x 600.6mm
-Weight: 25kg

datasheet

Input scope: 50~420Vrms, 0~20Arms and 1800W
Frequency range: 45~100HZ
3U volume, 1800W and 7”LCD screen
Parallel connection/three-phase control
Oscilloscope function supporting display of voltage and current waveform
Be able to measure Vrms, Vpk, Vdc, Irms, Ipk, Idc, W, VA, VAR, CF, PF and FREQ
Be able to measure THD (V) parameters of as high as 50 orders
AC electronic load: CC /CR/CW mode
DC electronic load: CC/CR/CW/CV mode
External 0-10V analog quantity control, voltage and current analog quantity monitoring function
OTP, OCP, OVP, UVP and OPP protection function
GPIB, LAN and USB communication interface and external USB flash disk interface
