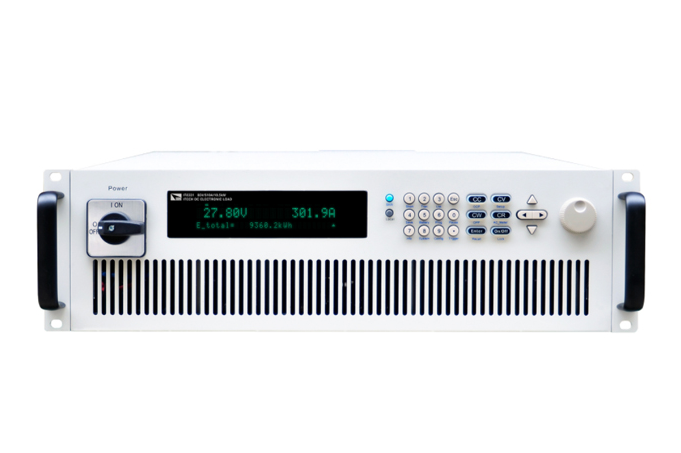

ITECH IT8331 Regenerative DC Electronic Load (80V, 510A, 10.5kW)
ManufacturerITECH(View more products from this manufacturer)
ModelIT8331
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Input rating ( 0～40 ℃)
Input voltage: 0~80V
Input current: 0~510A
Input power: 0~10.5kW
CC mode: 0~510A, 100mA, <0.4% Imax
CV mode: 0~80V, 10mV, <0.3% Umax
CR mode: 0.003~400Ω, 0.001Ω
CP mode: 0~10.5kW, 1W, <1.3% Pmax
Output parameters
Output voltage range: 190VAC~260VAC
Output frequency range: 45Hz~65Hz
Maximum output current (rms): 17Aac
Interfaces: RS232/USB/RS485/CAN/LAN
Dimension: 3U
Net weight: 40 kg
