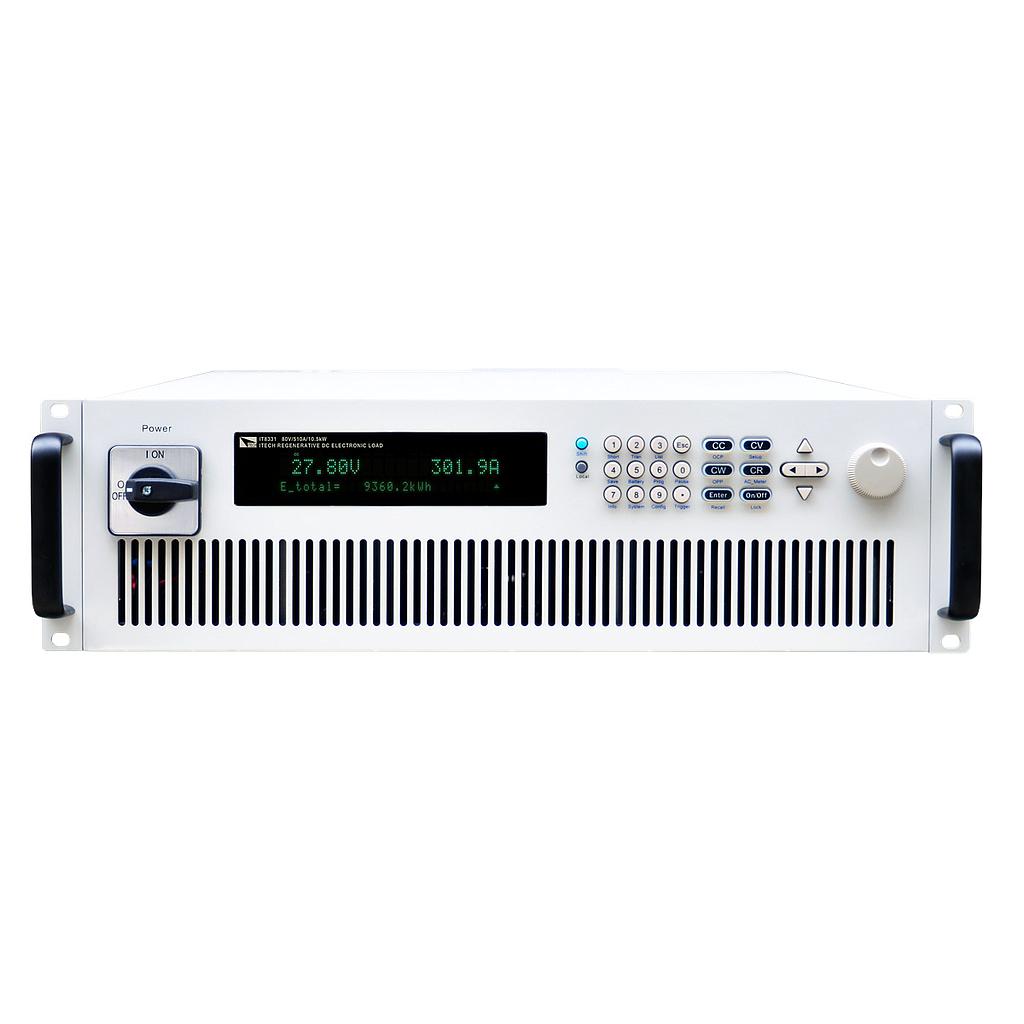

ITECH IT8321 DC Electronic Load (340A, 80V, 7kW)

Input rating:

( 0～40 ℃)

Input voltage : 0~80V

Input current: 0~340A

Input power: 0~7kW

CC mode

Range: 0~340A

Resolution: 100mA

Accuracy: <0.4% Imax

CV mode

Range: 0~80V

Resolution: 10mV

Accuracy: <0.3% Umax

CR mode

Range: 0.005~500Ω

Resolution: 0.001Ω

Accuracy: Rmax *2%：（0.005~60Ω）

Rmax *5%：（60~600Ω）

CP mode

Range: 0~7kW

Resolution: 1W

Accuracy: <1.3% Pmax

Output voltage range: 190VAC~260VAC

Power Factor: >0.99（Leg or lag）

DC component: -0.5A~+0.5A

Dimension: 3U

Net weight: 30kg
