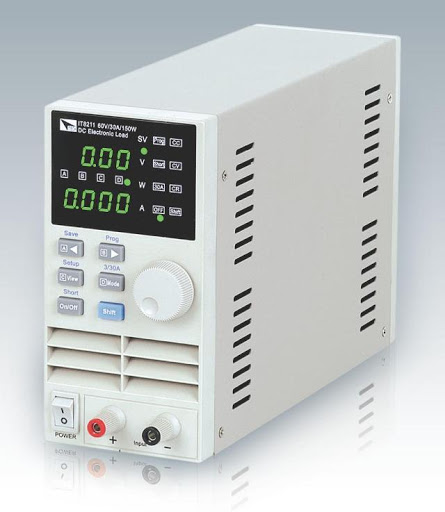

ITECH IT8211 Digital Control DC Electronic Load

- Input:
+ Voltage: 60V
+ Power: 150 W
+ Current: 30 A
- CC Mode
+Range: 0-3A; 0-30A
+Resolution: 1mA ;10mA
+Accuracy: 0.1%+0.1%FS, 0.1%+0.15%FS
- CV mode
+Range: 0-60V
+Resolution: 10mV
+Accuracy: 0.05%+0.1%FS
- CR mode
+Range: <100Ω; <4Ω
+Resolution: 0.01 Ω; 1Ω
+Accuracy: 1%+0.8%FS
- Voltage readback
+Range: 0-10V; 0-60V
+Resolution: 1mV; 10mV
+Accuracy: 0.05%+0.1%FS
- Current readback:
+Range: 0-3A; 0-30A
+Resolution: 1mA; 10mA
+Accuracy: 0/1%+0.15%FS; 0.1%+0.15%FS
-Power readback:
+Range: 0-100W; 100-150W
+Resolution: 10mW; 100mW
+Accuracy: 1%+0.1%FS
-Dimension: 88W x 175Hx 282D mm
- Weight: 2.6 kg
