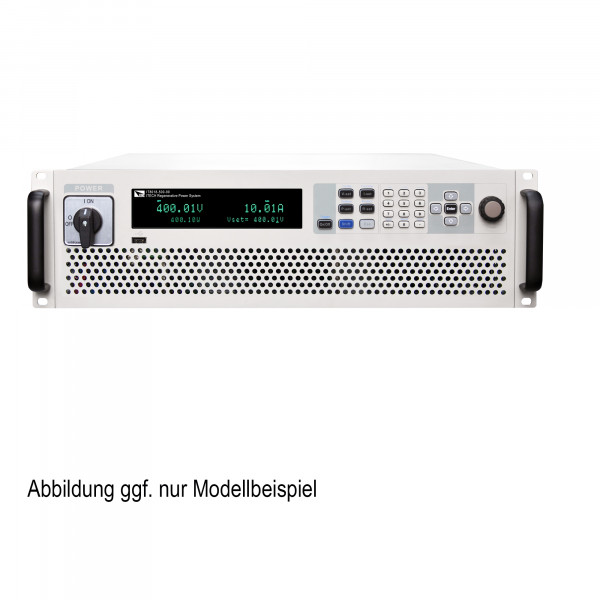

ITECH IT8036-800-150 Regenerative DC Electronic Load (800 V, 150 A, 36000 W)

Power: 36000 W

Voltage: 800 V

Current: 150 A

Size: 6 U

Recover DC energy to local grid with efficiency up to 95%

High power density design provides 18 kW in 3 U space

Built-in waveform generator, support generating arbitrary waveforms

LIST function. support importing LIST files by USB

Power accumulation function

Battery test function, auto-test function, short circuit test function

With pre-charging function, prevent DC loading current overshoot

Full protection: OVP/OCP/OPP/OTP/UVP, Vsense anti-reverse connection protection, and voltage transient drop protection

Built-in standard USB/CAN/LAN/digital IO interface, and optional

GPIB/Analog & RS232 interfaces

Support SCPI protocol, LabVIEW

Operating mode: CC/CV/CP/CR/CC+CV/CV+CR/CR+CC/CC+CV+CP+CR
