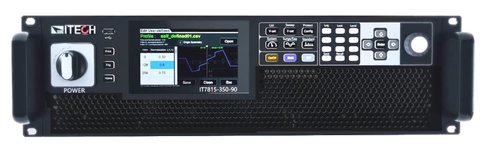

ITECH IT7815-350-90 High Power AC/DC Power Supply

Voltage setting:

Range: 0-350V (1phase/3phase/multichannel) / 0-700V (reverse )

Resolution: 0.01V

Accuracy: 0.1%+0.1% F.S. (16Hz-500Hz) / 0.1%+0.2% F.S./kHz (500Hz-2.4kHz)

Current setting:

Range: RMS - 90A (1phase)/ 30A (3phase/multichannel/reverse)

Resolution: 0.01A

Accuracy: 0.3%+0.3% F.S. (16Hz-500Hz) / 0.3%+0.6% F.S./kHz (500Hz-2.4kHz)

Frequency:

Set range: 16-2.4kHz

Set resolution: 0.01Hz

Set accuracy: 0.01% (16-500Hz) / 0.1% (500-2.4kHz)

Harmonic waveform: 50/60Hz and up to 50 orders

DC output:

Voltage setting

Range: -30 to +30Adc (multichannel/reverse) / -90 to +90Adc (1phase)

Accuracy: <0.1%+0.1% F.S.

Resolution: 0.01V

Current setting

Range: -495 to +495Vdc (1phase/multichannel) / -990 to +990Vdc (reverse)

Resolution: 0.01A

Accuracy: <0.3%+0.3% F.S
