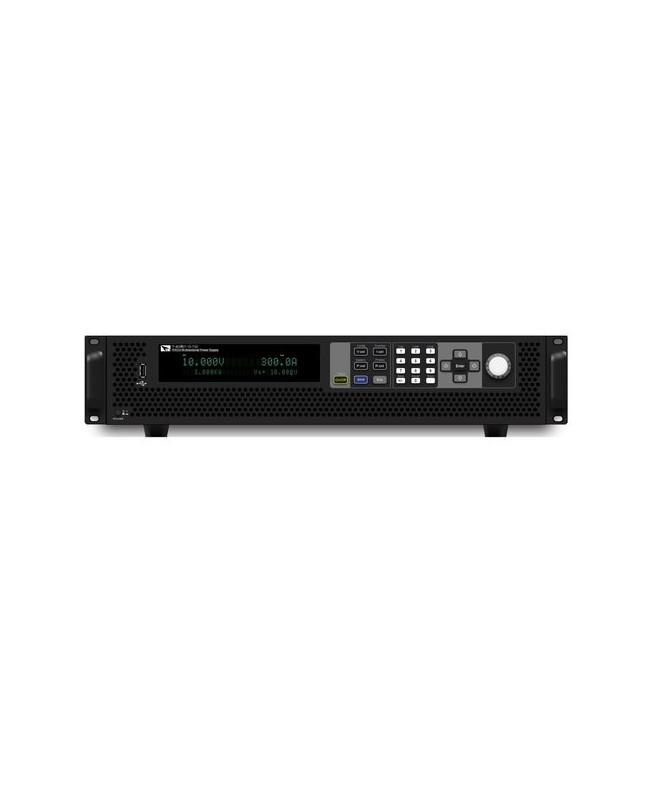

ITECH IT-M3912D-1500-24 High Power DC Power Supply (1500V/24A/12kW)

Size: 2 U

Rated value:

Voltage: 0～1500V

Current: 0A～24A

Power: 0W～12000W

Resistance in series （CV priority）: 0～1Ω

Setup Resolution

Voltage: 0.01V

Current: .001A

Power: 1W

Resistance in series （CV priority）: 0.01Ω

Read Back Resolution

Voltage: 0.01V

Current: 0.001A

Power: 1W

Setup Accuracy:

Voltage: ≤0.03% + 0.03%FS

Current: ≤0.1% + 0.1%FS

Power: ≤0.5% + 0.5%FS

Resistance in series （CV priority）: ≤1%FS

Read Back Accuracy

Voltage: ≤0.03% + 0.03%FS

Current: ≤0.1% + 0.1%FS

Power: ≤0.5% + 0.5%FS

Voltage ripple

Vp-p: ≤1500mVpp

Vrms: ≤150mV

Setup Temperature Coefficient

Voltage: ≤30ppm/℃

Current: ≤50ppm/℃

Read Back Temperature Coefficient

Voltage: ≤30ppm/℃

Current: ≤50ppm/℃

Rise Time( no load ): Voltage: ≤30ms

Rise Time( full load): Voltage: ≤60ms

Fall Time( no load): Voltage: ≤1s

Fall Time( full load): Voltage: ≤100ms

Line Regulation

Voltage: ≤0.01% + 0.01%FS

Current: ≤0.03% + 0.03%FS

Load Regulation

Voltage: ≤0.01% + 0.01%FS

Current: ≤0.05% + 0.05%FS

Output protection

OCP: 25A

OVP: 1515V

Overpower protection: 12240W

Working Temperature: 0～40℃

Storage Temperature: -10℃～70℃

IP: IP20

Isolation DC to GND: 1800Vdc

Isolation AC to GND: 3500Vdc

Cooling: Air

Dimension ( mm): 660mm*437mm*87mm

Weight( net): 30kg
