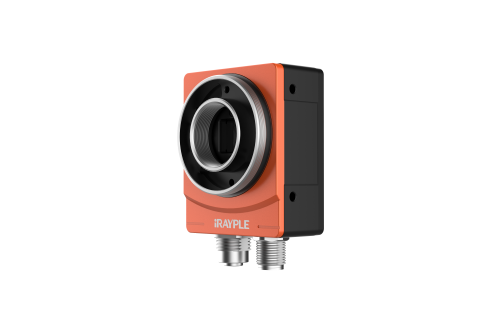

iRAYPLE R5120MG-00C-NGG01E Code Reader (4000 × 3000; 60 codes/s)

Basic

Resolution: 4000 × 3000

Max. Frame rate: 15 fps

Sensor Type: 1/1.7"CMOS

Shutter Mode: ROLLING

Pixel Size: 1.85 μm × 1.85 μm

Mono/Color: Mono

Lens Mount: C-MOUNT

Trigger Mode: Software trigger/Hardware trigger/Free run mode

Software: EasyID

Certifications: CE，UKCA，KC

Function: 1D:Code 39，Code 93，Code128，CodaBar，EAN8，EAN13，UPCA，UPCE，ITF25，2of5（Industrial2of5），standard25，GS1-128 ect； 2D:QR/Data Matrix/MQR/GS1 DM/GS1QR ect）；

Code quality evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416；

Performance

Max. Read Speed: 60 codes/s

Port

Connector: 2 industrial connectors: 1 Ethernet, 1 GPIO

Network Port: 1 GigE

GPIO Interface: 12-pin IO interface: 2 Opto-isolated inputs, 3 opto-isolated outputs

Communication Mode: 1 RS232, 1 GigE

Communication protocol: SDK，TCP Client，TCP Server，FTP，RS232，Profinet、Modbus、EtherNet/IP、MC(SLMP)、FINS/UDP、FINS/TCP

LED Indicator: 5 status indicators: system, network,trigger and 2 user configurable indicators

Power

Power Supply: 24VDC

Power Consumption: ≤4.0W(Without light source)

Structure

Product Dimensions: 68mm×55mm×28mm(Excluding lens mount and connector)

Net Weight: <200 g

Protection: IP67(With lens cover installed correctly)

Casing Material: Aluminium alloy

Environment

Operating Temperature: -20℃～+50℃

Operating Humidity: 20%～95%，No condensation(Excluding lens mount and connector)

Storage Temperature: -30℃～+80℃
