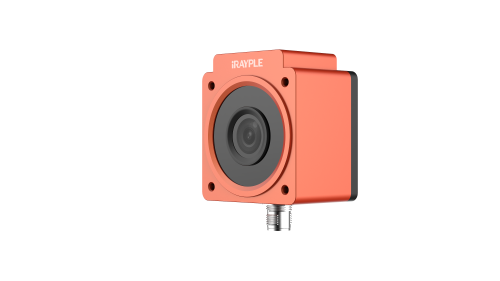

iRAYPLE R3138MG010E Code Reader (5.4 μm × 5.4 μm)

Basic

Max. Frame rate: 120 fps

Sensor Type: 1/4" CMOS

Shutter Mode: Global

Pixel Size: 5.4 μm × 5.4 μm

Mono/Color: Mono

Lens Mount: M12

Trigger Mode: Single Frame trigger/Software trigger/Free run mode

Software: SVStudio

Certifications: CE，FCC，KC

Function: DM-12&DM-14，DM4x4

Performance

Focal Length: 3.37 mm

Working Distance: 100 mm

Field of View: 110 mm × 93 mm

Max. Read Speed: 125 code/s

Max. Operating Speed: 3 m/s

Focus Control: Stationarytype

Light Source Type: WhiteLed

Depth of Field (DoF): ±20mm

Angular Accuracy: 0.1°

Displacement Accuracy: 0.1mm

Port

Connector: 1eaM12connector

Network Port: 100M Ethernet

GPIO Interface: 1 opto-isolated input，1 opto-isolated output

Communication Mode: 100MEthernet、RS485

Communication protocol: SDK，Serial，TCPServer，TCPClient

LED Indicator: 5LEDindicator，SYS、NET、Triggerand2user-definedLED

Power

Power Supply: DC24V±10%

Power Consumption: Disableillumination:<3.5W@24VDC Enableillumination:<7.5w@24VDC

Structure

Product Dimensions: 60mm×60mm×43mm(Excludedinterfaceport)

Packaging Dimensions: 164 mm × 122 mm × 91 mm

Net Weight: <225 g

Gross Weight: <350 g

Protection: IP65

Casing Material: aluminum alloy

Environment

Operating Temperature: -20℃～+50℃

Operating Humidity: 20%～95%，No condensation

Storage Temperature: -30℃～+80℃
