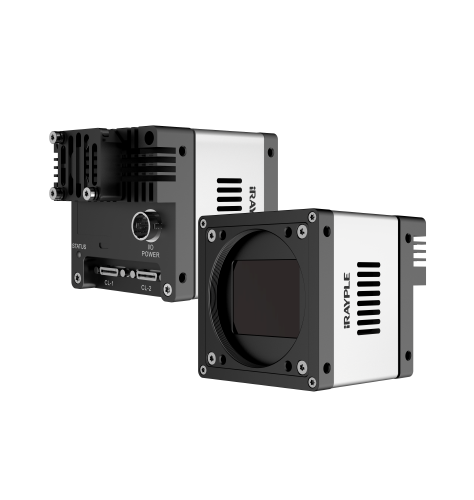

iRAYPLE AX5E07CK250E Large Area Scan (customization; 9280 × 4992; Color)

Basic

Sensor: customization

Image Sensor: 29.9 mm × 16.0 mm CMOS

Shutter: Global

Resolution: 9280 × 4992

Frame Rate: 17.5 fps

Bit Depth: 12

Mono/Color: Color

Pixel Size: 3.2 μm × 3.2 μm


Pixel: 50MP

S/N Ratio: 40dB

WDR: 66dB

Image Format: BayerGB8

ROI: Support

Y Flip: Support

Gain: 1~32

Gamma: From 0 to 4, support LUT

Exposure Time: 16μS~15S

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 512MB data storage

Port

Port: CameraLink

GPIO Interface: 3x Opto-isolated input, 3x Opto-isolated output, 1x RS232

Lens Mount: M58 x 0.75

Power

Power Supply: DC 24V power supply via 12 Hirose interface

Power Consumption: 24V≈6.83W

Structure

Product Dimensions: 72mm*72mm*65mm(Non including rear case connector)

Net Weight: 490 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
