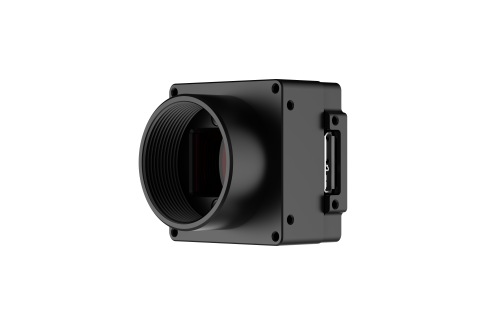

iRAYPLE AB5131CU000E Board-level camera (PYTHON 1300; 1280 × 1024; Color)

Basic

Sensor: PYTHON 1300

Image Sensor: 1/2"CMOS

Shutter: Global

Resolution: 1280 × 1024

Frame Rate: 208 fps

Bit Depth: 10

Mono/Color: Color

Pixel Size: 4.8 μm × 4.8 μm


Pixel: 1.3MP

S/N Ratio: >38dB

Dynamic Range: 60dB

Image Format: BayerRG8/10/10Packed，BayerGB8/10/10Packed

ROI: Support

X Flip: Support

Y Flip: Support

Gain: 1~32

White Balance: Automatic white balance

Gamma: from 0 to 4, support LUT

Exposure Time: 40μS~1S

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

FPN: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 64MB image cache

Port

Port: USB3.0

GPIO Interface: Standard 5 pin trigger connecter: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output

Lens Mount: C-mount

Power

Power Supply: power supply via USB interface（conform to USB3.0 interface specification）

Power Consumption: ≈3.4W

Structure

Product Dimensions: 35mm*35mm*19mm

Net Weight: 46 g

Environment

Storage Temperature: -30℃～+80℃

Operating Temperature: -30℃～+50℃
