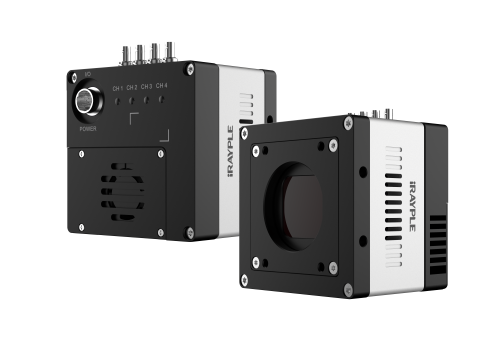

iRAYPLE A9B57MP340E Large Area Scan (GMAX0505; 5120 × 5120; Mono)

Basic

Sensor: GMAX0505

Image Sensor: 1.1"CMOS

Shutter: Global

Resolution: 5120 × 5120

Frame Rate: 150 fps

Bit Depth: 10

Mono/Color: Mono

Pixel Size: 2.5 μm × 2.5 μm


Pixel: 25MP

S/N Ratio: 36dB

WDR: 63dB

Image Format: BayerGR8 /BayerGR10 /BayerGR12 /BayerRG8 /BayerRG10 /BayerRG12/BayerGB8/BayerGB10/BayerGB12/BayerBG8/BayerBG10/BayerBG12

ROI: Support

X Flip: Support

Y Flip: Support

Gain: 1~100

White Balance: Support

Exposure Time: 15μS~5S

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 2GB data cache

Port

Port: CXP-12

GPIO Interface: 3x Opto-isolated input, 3x Opto-isolated output；1x RS232

Lens Mount: M42x1

Power

Power Supply: DC 24V power supply via 12-pin Hirose interface;

Power Consumption: 24V≈19.4W

Structure

Product Dimensions: 80mm*80mm*65mm(not including rear case connector)

Net Weight: 890 g

Environment

Storage Temperature: -30℃ ~ 80℃

Operating Temperature: -30℃ ~ 50℃
