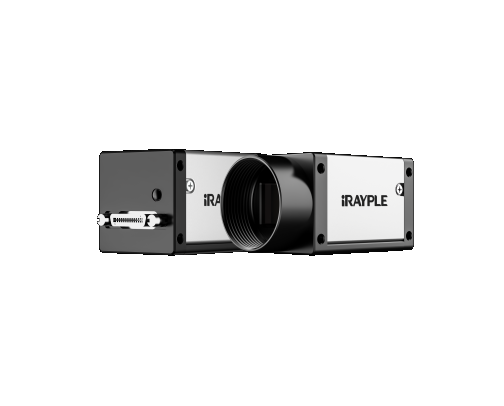

iRAYPLE A5201MK402E Area Scan Camera (PYTHON 2000; 1920 × 1200; Mono 8/10)

Basic

Sensor: PYTHON2000

Image Sensor: 2/3"CMOS

Shutter: Global

Resolution: 1920 × 1200

Frame Rate: 37.8 fps

Bit Depth: 10

Mono/Color: Mono8/10

Pixel Size: 4.8 μm × 4.8 μm


Pixel: 2.3MP

S/N Ratio: >38dB

WDR: 60dB

Image Format: Mono8/10

ROI: Support

Y Flip: Support

Gain: 1~32

Exposure Time: 45μS~1S

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

Performance

User Setting: Support two sets of user-defined configurations

Port

Port: CameraLink

GPIO Interface: 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output

Lens Mount: C-mount

Power

Power Supply: PoCL power supply

Power Consumption: 2.34W

Structure

Product Dimensions: 29mm*29mm*43.8mm(not including lens mount and rear case connector)

Net Weight: 80 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
