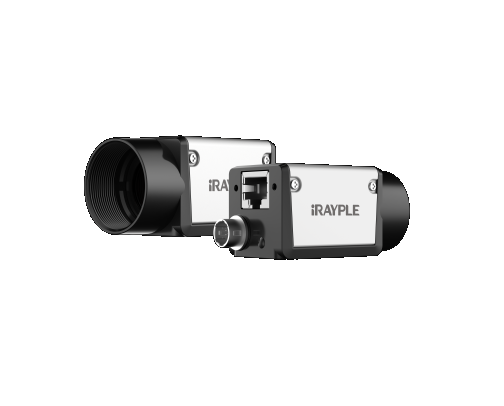

iRAYPLE A5131MG75E-NIR Area Scan Camera (PYTHON 1300; 1280 × 1024; Mono)

Basic

Sensor: PYTHON 1300

Image Sensor: 1/2"CMOS

Shutter: Global

Resolution: 1280 × 1024

Frame Rate: 90 fps

Bit Depth: 10

Mono/Color: Mono

Pixel Size: 4.8 μm × 4.8 μm


Pixel: 1.3MP

S/N Ratio: ＞38dB

WDR: 60dB

Image Format: Mono8/10/10Packed

Binning: Support

Decimation: Support

ROI: Support

X Flip: Support

Y Flip: Support

Gain: 1~32

Gamma: From 0 to 4，support LUT

Exposure Time: 1μs～1s

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

FPN: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 256MB

Port

Port: GigE, PoE

GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output

Lens Mount: C-mount

Power

Power Supply: PoE/ DC 9V~24V power supply via Hirose interface

Power Consumption: 12V≈3.4W

Structure

Product Dimensions: 29 mm×29 mm×42 mm (not including lens mount and rear case connector)

Net Weight: 88 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
