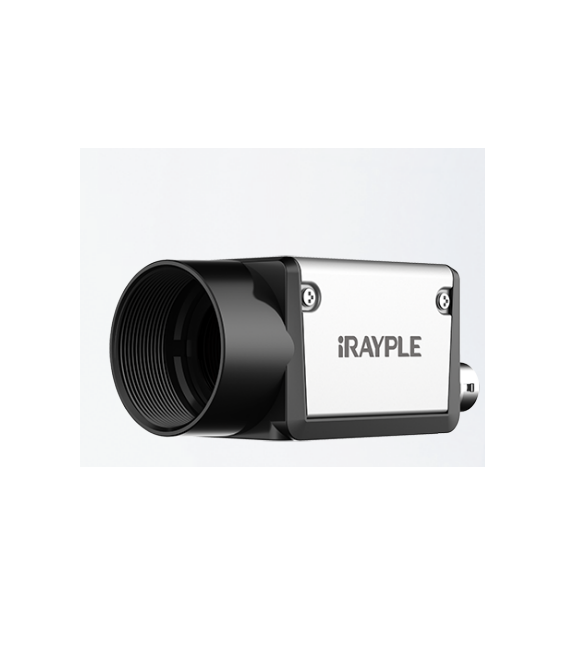

iRAYPLE A3A04MG10E Area Scan Cameras (MT9J003, 3840 × 2748, mono)

Basic

Sensor: MT9J003

Image Sensor: 1/2.3"CMOS

Shutter: Rolling

Resolution: 3840 × 2748

Frame Rate: 10 fps

Bit Depth: 12

Mono/Color: Mono

Pixel Size: 1.67 μm × 1.67 μm


Pixel: 10.6MP

S/N Ratio: >32dB

Dynamic Range: 65dB

Image Format: Mono8/10/10Packed/12/12Packed

Binning: Support

ROI: Support

Gain: 1~32

Gamma: From 0 to 4，support LUT

Exposure: Time 25μS~1S

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

FPN: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 256MB

Port

Port: GigE, PoE

GPIO Interface: 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable

input and output

Lens Mount: C-mount

Power

Power Supply: PoE/ DC 9V~24V power supply via Hirose interface

Power Consumption: 12V≈2.9W

Structure

Product Dimensions: 29mm*29mm*42mm

Net Weight: 88 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
