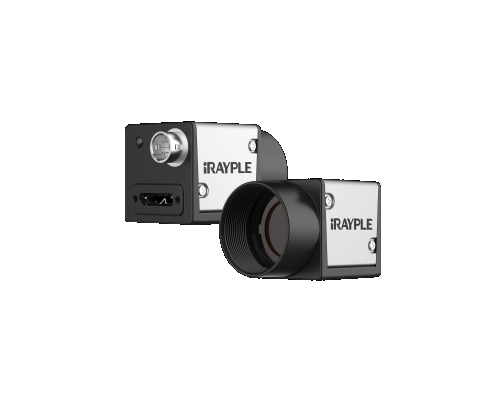

iRAYPLE A3200CU000E Area Scan Camera (IMX290; 1920 × 1080; Color)

Basic

Sensor: IMX290

Image Sensor: 1/2.8"CMOS

Shutter: Rolling

Resolution: 1920 × 1080

Frame Rate: 120 fps

Bit Depth: 10

Mono/Color: Color

Pixel Size: 2.9 μm × 2.9 μm


Pixel: 2.07MP

S/N Ratio: >38dB

WDR: 66dB

Image Format: BayerRG8/10/10Packed，BayerGB8/10/10Packed

ROI: Support

Gain: 1~32

White Balance: Automatic white balance

Gamma: Range from 0 to 4, support LUT

Exposure Time: 8μS~1S

Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode

SPC: Support

Performance

User Setting: Support two sets of user-defined configurations

Image Buffer: 64MB

Port

Port: USB3.0

GPIO Interface: 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output

Lens Mount: C

Power

Power Supply: Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V

Power Consumption: ≈2.8W

Structure

Product Dimensions: 29mm*29mm*29mm

Net Weight: 68 g

Environment

Storage Temperature: - 30℃~+80℃

Operating Temperature: - 30℃~+50℃
