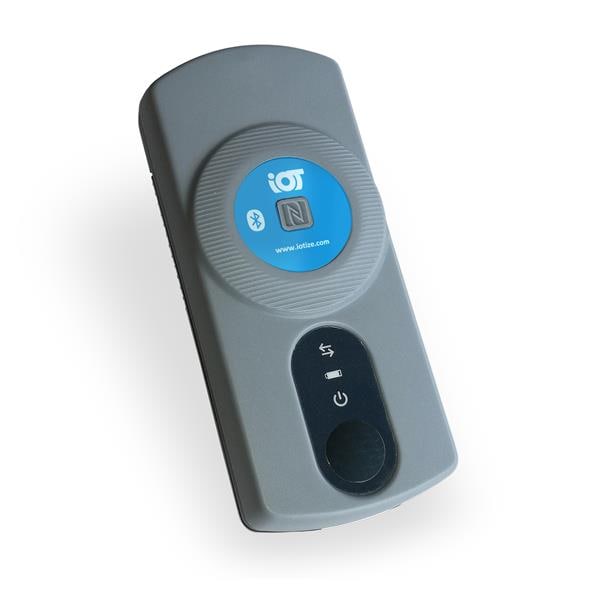

IoTize TnP-NSR103 BLE, NFC RS232/RS485 (Modbus)-BLE Adapter, NFC pairing

Class: Bluetooth Low Energy (BLE)

Range: 30 m

Data Rate: 500 b/s

Frequency: 2.4 GHz

Dimensions: 105 mm x 33 mm x 46 mm

Unit Weight: 326.592 g

Output Power: 3 dBm

Interface Type: RS-232, RS-485, USB

Mounting Style: Panel Mount

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 93 dBm

Supply Voltage - Max: 5 V

Supply Voltage - Min: 5 V

Operating Supply Voltage: 2.3 V to 3.6 V

Supply Current Receiving: 7 mA, 15 mA

Supply Current Transmitting: 7 mA, 15 mA

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 10 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 4.1
