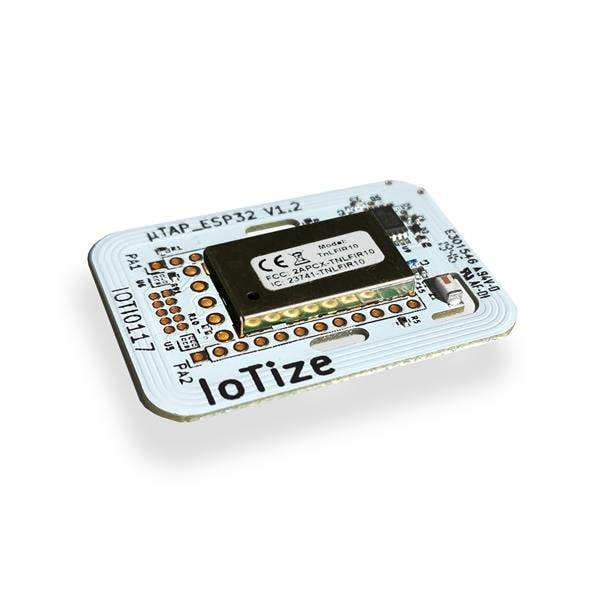

IoTize TnL-FIW103 WiFi Modules Module Wi-Fi (802.11), BLE, NFC + antennas

Frequency: 2.4 GHz

Dimensions: 28 mm x 38 mm x 3 mm

Unit Weight: 4 g

Output Power: 16 dBm

Interface Type: Serial, UART

Protocol - Sub GHz: NFC

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.3 V

Operating Supply Voltage: 2.3 V to 3.6 V

Protocol - WiFi - 802.11: 802.11 b/g/n

Supply Current Receiving: 7 mA, 50 mA, 65 mA

Supply Current Transmitting: 7 mA, 110 mA, 65 mA

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 20 C

Protocol - Bluetooth, BLE - 802.15.1: BLE, Bluetooth 4.2
